Taper Drill Sockets

SUPERIOR DESIGN/PREMIUM QUALITY

These taper drill sockets are hardened, precision ground, and concentric within. 0002 of an inch. They fit directly into tool holders and turrets to positively drive all morse taper shank tools, drills, reamers, and counterbores. The straight shank style "A" taper drill sockets are manufactured in limited quantities and sizes. Please contact our sales staff for availability and pricing information. Select the O.D. size that fits your machine and order from the chart below.

*Item available in style "A". Call for price and availability.

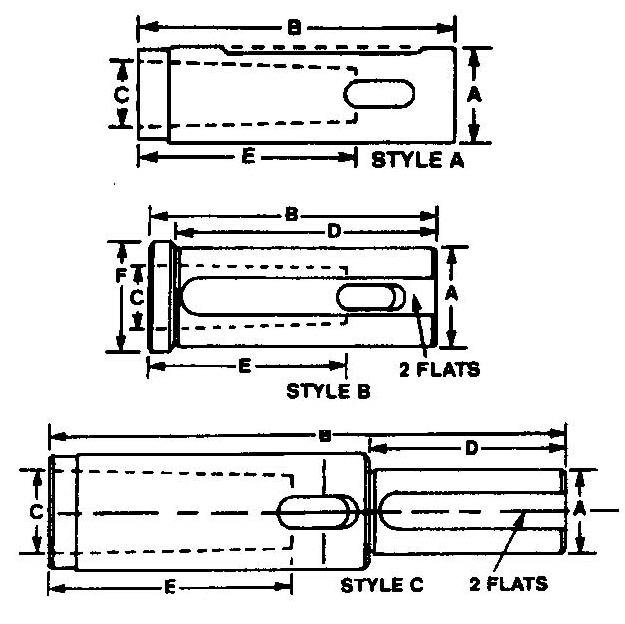

		SHANK DIA.		MORSE TAPER
CAT. NO.	STYLE	A	B	C	D	E	F
MT1-0075	A	3/4	3-1/4	No. 1	2.313	2-3/16	1
*MT1-1000	B	1	3-3/4	No. 1	3.125	2-3/16	1-1/4
*MT2-1000	B	1	3-3/4	No. 2	3.125	2-5/8	1-1/4
*MT1-1250	B	1-1/4	4	No. 1	3.375	2-3/16	1-1/2
*MT2-1250	B	1-1/4	4	No. 2	3.375	2-5/8	1-1/2
*MT3-1250	B	1-1/4	4	No. 3	4.000	3-1/4	1-1/2
*MT1-1500	B	1-1/2	5	No. 1	4.375	2-3/16	1-3/4
*MT2-1500	B	1-1/2	5	No. 2	4.375	2-5/8	1-3/4
*MT3-1500	B	1-1/2	5	No. 3	4.375	3-1/4	1-3/4
*MT4-1500	B	1-1/2	5-3/4	No. 4	4.375	4-1/8	1-3/4
*MT1-1750	B	1-3/4	5-3/4	No. 1	5.125	2-3/16	2
*MT2-1750	B	1-3/4	5-3/4	No. 2	5.125	2-5/8	2
*MT3-1750	B	1-3/4	5-3/4	No. 3	5.125	3-1/4	2
*MT4-1750	B	1-3/4	5-3/4	No. 4	4.375	4-1/8	2
MT5-1750	C	1-3/4	11-1/8	No. 5	4-1/4	5-1/4	2-3/8
MT2-2000	B	2	6-1/8	No. 2	5-1/2	2-5/8	2-1/4
MT3-2000	B	2	6-1/8	No. 3	5-1/2	3-1/4	2-1/4
MT4-2000	B	2	6-1/8	No. 4	5-1/2	4-1/8	2-1/4
MT5-2000	C	2	11-1/8	No. 5	4-1/4	5-1/4	2-3/8
MT2-2500	B	2-1/2	5-3/4	No. 2	5-1/8	2-5/8	2-3/4
MT3-2500	B	2-1/2	6-5/8	No. 3	6	3-1/4	2-3/4
MT4-2500	B	2-1/2	6-5/8	No. 4	6	4-1/8	2-3/4
MT5-2500	B	2-1/2	7-5/8	No. 5	7	5-1/4	2-3/4
MT4-3000	B	3	6-5/8	No. 4	6	4-1/8	3-3/8
MT5-3000	B	3	7-5/8	No. 5	7	5-1/4	3-3/8
MT4-2250	B	2-1/4	6-5/8	No. 4	6	4-1/8	2-1/2
MT5-2250	B	2-1/4	7-5/8	No. 5	7	5-1/4	2-1/2
MT4-2750	B	2-3/4	6-5/8	No. 4	6	4-1/8	3
MT5-2750	B	2-3/4	7-5/8	No. 5	7	5-1/4	3
