Tool Holder Bushings
Type "Z" Tool Holder Bushings
The most flexible Tooholder Bushing for all types of CNC Turning Centers, Turret Lathes and Chuckers. The Elongated Slot gives the user a complete interchangeability with all brands of equipment. The added Set Screws in the Head allow for increased rigidity. The bushings are hardened and precision ground concentric. Can also be used for Preset Tooling.Select the O.D. size that fits your machine and order from the chart below.
| SPECIFY LENGTH CHOICE DIM. E& C | |||||||||||
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | Z (STD) | ZS (SHORT) | ZL (LONG) | ||||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | E | C | E | C | E | C | D |
| *6840 | 3/4" | 20MM | 1/4, 5/16, 3/8, 1/2 | 6, 8, 10, 12 | 2-1/2" | 2-3/8" | 1/2" | ||||
| *6841 | 1" | 25MM | 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 | 8, 10, 12, 16, 20 | 2-3/4" | 2-3/8" | 1/2" | ||||
| *6842 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1" | 10, 12, 16, 20, 25 | 3" | 2-5/8" | 2-1/4" | 1-7/8" | 3-3/4" | 3-1/8" | 5/8" |
| *6843 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1", 1-1/4 | 10, 12, 16, 20, 25, 32 | 3-1/4" | 2-7/8" | 2-1/2" | 2-1/8" | 4" | 3-5/8" | 3/4" |
| *6844 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1", 1-1/4, 1-1/2 | 12, 16, 20, 25, 32, 40 | 3-1/2" | 3-1/8" | 2-3/4" | 2-3/8" | 4-1/4" | 3-7/8" | 3/4" |
| *6845 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1", 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 3-3/4" | 3-1/2" | 3" | 2-5/8" | 4-1/2" | 4-1/8" | 3/4" |
| *6846 | 2-1/2" | 65MM | 5/8, 3/4, 7/8, 1", 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 16, 20, 25, 32, 40, 45, 50 | 4-1/4" | 3-7/8" | 3-1/2" | 3-1/8" | 5" | 4-5/8" | 3/4" |
| *6847 | 3" | 80MM | 1", 1-1/4, 1-1/2, 1-3/4, 2", 2-1/4, 2-1/2 | 25, 32, 40, 50, 60, 65 | 4-3/4" | 4-3/8" | 3-3/4" | 3-3/8" | 5-3/4" | 5-3/8" | 3/4" |
| *6848 | 3-1/2" | 90MM | 1-1/4, 1-1/2, 1-3/4, 2", 2-1/4, 2-1/2, 3" | 32, 40, 50, 60, 65 | 5-1/2" | 4-7/8" | 4-1/2" | 3-7/8" | 6-1/2" | 5-7/8" | 1" |
| *6849 | 4" | 100MM | 1-1/2, 1-3/4, 2", 2-1/4, 2-1/2, 3" | 40, 50, 60, 65, 80 | 6-1/4" | 5-5/8" | 5" | 4-3/8" | 7-1/2" | 4-3/8" | 1" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE AND LENGTH CHOICE-Z, ZS OR ZL
Type "C" Tool Holder Bushings
This CNC Type C Bushing is designed for universal use on all CNC turning machines to adapt a wide variety of Boring Bars, Drills, Reamers and Shank type tools. Precision machine hardened and ground concentric; made in the U.S.A. - BUILT TO LAST!Select the O.D. size that fits your machine and order from the chart below.
| SPECIFY LENGTH CHOICE DIM. C& D | ||||||||
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | C (STD) | CS (SHORT) | ||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D | C | D |
| *6810 | 3/4" | 20MM | 1/4, 5/16, 3/8, 1/2 | 6, 8, 10, 12 | 1-1/2" | 2" | 1-1/8" | 1-1/2" |
| *6811 | 1" | 25MM | 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 | 8, 10, 12, 16, 20 | 2-3/8" | 2-3/4" | 1-3/8" | 1-3/4" |
| *6812 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1" | 10, 12, 16, 20, 25 | 2-3/4" | 3-1/4" | 1-3/4" | 2-1/8" |
| *6813 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1", 1-1/4 | 10, 12, 16, 20, 25, 32 | 3" | 3-3/8" | 2-1/8" | 2-1/2" |
| *6814 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1", 1-1/4, 1-1/2 | 12, 16, 20, 25, 32, 40 | 3-1/8" | 3-1/2" | 2-5/8" | 3" |
| *6815 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1", 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 3-5/8" | 4" | 3" | 3-1/2" |
| *6816 | 2-1/2" | 65MM | 3/4, 1", 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 20, 25, 32, 40, 45, 50 | 4-1/8" | 4-1/2" | 3-1/2" | 4" |
| *6817 | 3" | 80MM | 1", 1-1/4, 1-1/2, 1-3/4, 2", 2-1/4, 2-1/2 | 25, 32, 40, 45, 50, 60, 65 | 4-5/8" | 5" | 4-1/8" | 4-1/2" |
| *6818 | 3-1/2" | 90MM | 1", 1-1/4, 1-1/2, 1-3/4, 2", 2-1/4, 2-1/2, 3" | 25, 32, 40, 45, 50, 60, 65 | 5" | 5-3/4" | 4-3/4" | 5-1/4" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE AND LENGTH CHOICE-C OR CS
Type "J" Tool Holder Bushings
This Type J Toolholder Bushing, with long solid body, has clearance holes so that you can clamp directly on the tool with set screws for positive alignment of the cutting edge of the tool. They are hardened and precision ground concentric.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | F | ||||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D | E | # of Holes | Hole Dia |
| *6819 | 3/4" | 20MM | 1/4, 5/16, 3/8, 1/2 | 6, 8, 10, 12 | 1-1/2" | 3/8" | 13/16" | 2 | 3/8" |
| *6820 | 1" | 25MM | 3/8, 1/2, 5/8, 3/4 | 10, 12, 16, 20 | 1-3/4" | 7/16" | 7/8" | 2 | 5/8" |
| *6821 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1 | 10, 12, 16, 20, 25 | 2-1/8" | 5/8" | 1" | 2 | 3/4" |
| *6822 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 2-1/2" | 11/16" | 1-1/8" | 2 | 7/8" |
| *6823 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2 | 12, 16, 20, 25, 32, 40 | 3" | 3/4" | 1-1/4" | 2 | 7/8" |
| *6824 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 3-1/2" | 3/4" | 1-1/2" | 2 | 1" |
| *6825 | 2-1/2" | 65MM | 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 20, 25, 32, 40, 45, 50 | 4" | 7/8" | 1-3/4" | 2 | 1-1/4" |
| *6826 | 3" | 80MM | 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 | 25, 32, 40, 45, 50, 60, 65 | 4-1/2" | 1" | 2" | 4 | 1-1/4" |
| *6827 | 3-1/2" | 90MM | 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2, 3 | 25, 32, 40, 45, 50, 60, 65 | 5-1/4" | 1-1/4" | 2-1/2" | 4 | 1-1/4" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE
Type "B" Tool Holder Bushings
These split Type B Bushings are manufactured with flexible manufacturing systems, for all Types and sizes of CNC Lathes and Chuckers; are Heat Treated and precision ground concentric. It is used to adapt Drills, Boring Bars, and other Shank Tools.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | |||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C |
| *6801 | 3/4" | 20MM | 1/4, 5/16, 3/8, 1/2 | 6, 8, 10, 12 | 1-1/2" |
| *6802 | 1" | 25MM | 3/8, 1/2, 5/8, 3/4 | 10, 12, 16, 20 | 1-3/4" |
| *6802.5 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1 | 10, 12, 16, 20, 25 | 2-1/8" |
| *6803 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 2-1/2" |
| *6804 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2 | 10, 12, 16, 20, 25, 32, 40 | 3" |
| *6805 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40 | 3-1/2" |
| *6806 | 2-1/2" | 65MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 20, 25, 32, 40, 45, 50 | 4" |
| *6807 | 3" | 80MM | 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 | 25, 32, 40, 45, 50, 60, 65 | 4-1/2" |
| *6808 | 3-1/2" | 90MM | 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2, 3 | 25, 32, 40, 45, 50, 60, 65 | 5-1/4" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE
Type "LB" Tool Holder Bushings
This Type LB Toolholder Bushing with long solid body, has four clearance holes so that you can clamp directly on the tool with Set Screws for positive alignment of the cutting edge of the tool. Manufactured to include clearance notches for coolant. They are hardened and precision ground concentric.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | |||||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D | E | F | G |
| *6858 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1 | 10, 12, 16, 20, 25 | 3-1/8 | 3/8" | 1/2" | 1-3/4" | 5/8" |
| *6859 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 3-1/8" | 5/8" | 1/2" | 1-3/4" | 5/8" |
| *6860 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4,1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 4-1/2" | 1/2" | 1/2" | 2-3/4" | 11/16" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE

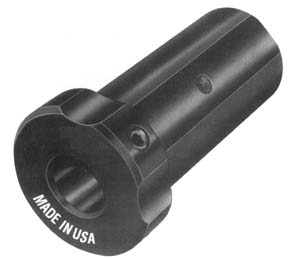

Type "LBF" Tool Holder Bushings
These LBF Type Bushings are manufactured with a flat for clamping the Toolholder and two set screws for clamping a variety of Drills, Boring Bars and other Shank Tools. Euipped with two clearance notches for coolant, they are Heat Treated and precision ground concentric. This Universal Style is good for Coolant Through the Tool applications due to its solid configuration.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | ||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D |
| *6863 | 1-1/4" | 32MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1 | 10, 12, 16, 20, 25 | 2.812 | 5/8" |
| *6864 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 3.156 | 5/8" |
| *6865 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 3.750 | 3/4" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE
Type "DD" Tool Holder Bushings
With the combination of the industry standard "B" style split bushing and "J" set screw clearance bushing design, we have set a precedent with its new innovative "DD" Double Duty bushing. This new improved "DD" bushing with clearance holes and split milled flat can be used as a conventional "B" style or "J" style bushing.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | F | ||||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D | E | # of Holes | Hole Dia |
| *6830 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 2-1/2" | 11/16" | 1-1/8" | 2 | 7/8" |
| *6831 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2 | 12, 16, 20, 25, 32, 40 | 3" | 3/4" | 1-1/4" | 2 | 7/8" |
| *6832 | 2" | 50MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4 | 12, 16, 20, 25, 32, 40, 45 | 3-1/2" | 3/4" | 1-1/2" | 2 | 1" |
| *6833 | 2-1/2" | 65MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 20, 25, 32, 40, 45, 50 | 4" | 7/8" | 1-3/4" | 2 | 1-1/4" |
| *6834 | 3" | 80MM | 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 | 25, 32, 40, 45, 50, 60, 65 | 4-1/2" | 1" | 2" | 4 | 1-1/4" |
| *6835 | 3-1/2" | 90MM | 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2, 3 | 25, 32, 40, 45, 50, 60, 65 | 5-1/4" | 1-1/4" | 2-1/2" | 4 | 1-1/4" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE
Type "L" Tool Holder Bushings
All "L" style bushings are shoulder-less, have set screw clearance holes opposite the slot and have a split with a flat on the O.D. "L" Style Bushings are used to adapt drills, boring bars and shank tools to any size in a standard turret or toolholder. We have a full selection and assortment of these bushings.Select the O.D. size that fits your machine and order from the chart below.
| SERIES | SPECIFY CHOICE | CHOOSE FROM STANDARD I.D. SIZES SHOWN | F | ||||||
| CAT. NO. | O.D. | O.D. | INCH | METRIC | C | D | E | # of Holes | Hole Dia |
| *6850 | 1-1/2" | 40MM | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4 | 10, 12, 16, 20, 25, 32 | 3" | 3/4" | 1-5/8" | 2 | 7/8" |
| *6851 | 1-3/4" | 45MM | 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2 | 12, 16, 20, 25, 32, 40 | 3" | 3/4" | 1-5/8" | 2 | 7/8" |
| *6852 | 2-1/4" | 60MM | 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2 | 16, 20, 25, 32, 40, 50 | 4-1/2" | 7/8" | 2" | 2 | 1" |
| *6853 | 2-3/4" | 70MM | 3/4, 7/8, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/4 | 20, 25, 32, 40, 50 | 4-1/2" | 7/8" | 2" | 2 | 1" |
NOTE: SERIES CATALOG NUMBERS SHOWN ARE FOR INCH O.D./ I.D. COMBINATIONS.
FOR BUSHINGS WITH ANY METRIC DIMENSIONS ADD A LETTER M TO THE CATALOG NUMBER
TO ORDER, SPECIFY SERIES CAT. NO., O.D. AND I.D. SIZE
