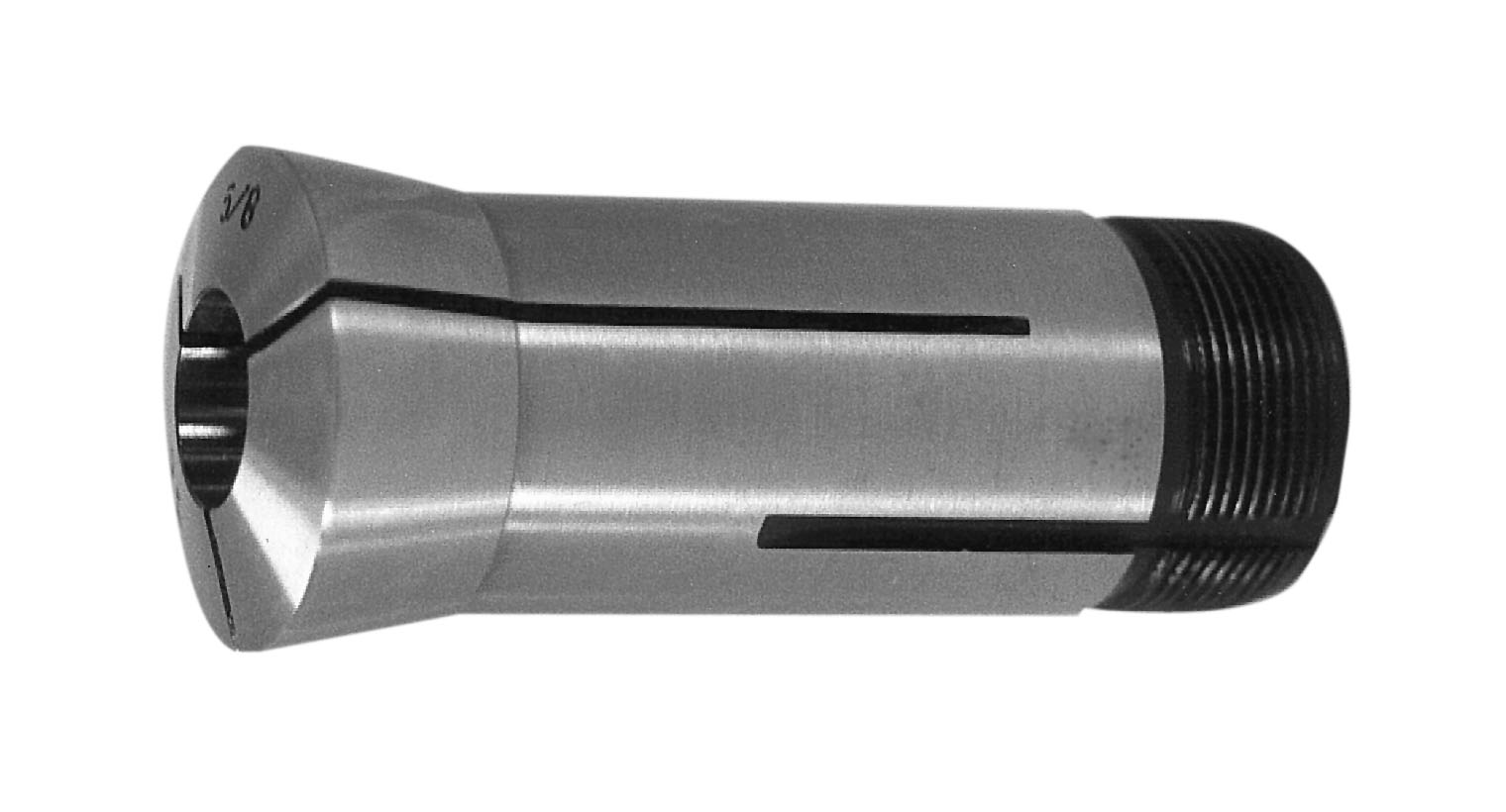

5C Collets Inch & Metric Sizes

5C Collets Inch & Metric Sizes

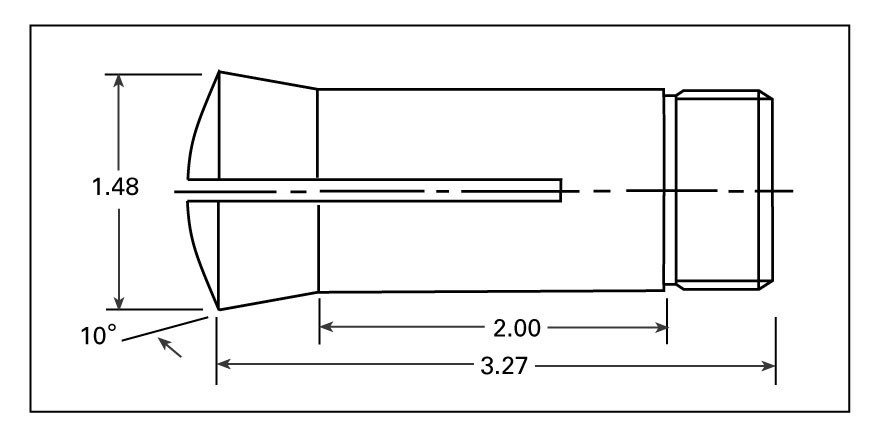

5C Collets Inch & Metric Sizes - Diagram

ROUND COLLETS
SIZE PART#



SIZE PART#

1/16

5C-1/16RNS

37/64

5C-37/64RNS

5/64

5C-5/64RNS

19/32

5C-19/32RNS

3/32

5C-3/32RNS

39/64

5C-39/64RNS

7/64

5C-7/64RNS

5/8

5C-5/8RNS

1/8

5C-1/8RNS

41/64

5C-41/64RNS

9/64

5C-9/64RNS

21/32

5C-21/32RNS

5/32

5C-5/32RNS

43/64

5C-43/64RNS

11/64

5C-11/64RNS

11/16

5C-11/16RNS

3/16

5C-3/16RNS

45/64

5C-45/64RNS

13/64

5C-13/64RNS

23/32

5C-23/32RNS

7/32

5C-7/32RNS

47/64

5C-47/64RNS

15/64

5C-15/64RNS

3/4

5C-3/4RNS

1/4

5C-1/4RNS

49/64

5C-49/64RNS

17/64

5C-17/64RNS

25/32

5C-25/32RNS

9/32

5C-9/32RNS

51/64

5C-51/64RNS

19/64

5C-19/64RNS

13/16

5C-13/16RNS

5/16

5C-5/16RNS

53/64

5C-53/64RNS

21/64

5C-21/64RNS

27/32

5C-27/32RNS

11/32

5C-11/32RNS

55/64

5C-55/64RNS

23/64

5C-23/64RNS

7/8

5C-7/8RNS

3/8

5C-3/8RNS

57/64

5C-57/64RNS

25/64

5C-25/64RNS

29/32

5C-29/32RNS

13/32

5C-13/32RNS

59/64

5C-59/64RNS

27/64

5C-27/64RNS

15/16

5C-15/16RNS

7/16

5C-7/16RNS

61/64

5C-61/64RNS

29/64

5C-29/64RNS

31/32

5C-31/32RNS

15/32

5C-15/32RNS

63/64

5C-63/64RNS

31/64

5C-31/64RNS

1"

5C-1RNS

1/2

5C-1/2RNS

1-1/64

5C-1-1/64RNS

33/64

5C-33/64RNS

1-1/32

5C-1-1/32RNS

17/32

5C-17/32RNS

1-3/64

5C-1-3/64RNS

35/64

5C-35/64RNS

1-1/16

5C-1-1/16RNS

9/16

5C-9/16RNS





HEX COLLETS



SQUARE COLLETS
SIZE PART# SIZE PART#

1/8

5C-1/8HNS

1/8

5C-1/8SNS

3/16

5C-3/16HNS

3/16

5C-3/16SNS

1/4

5C-1/4HNS

3/4

5C-3/4SNS

5/16

5C-5/16HNS

5/16

5C-5/16SNS

3/8

5C-3/8HNS

3/8

5C-3/8SNS

7/16

5C-7/16HNS

7/16

5C-7/16SNS

1/2

5C-1/2HNS

1/2

5C-1/2SNS

9/16

5C-9/16HNS

9/16

5C-9/16SNS

5/8

5C-5/8HNS

5/8

5C-5/8SNS

11/16

5C-11/16HNS

11/16

5C-11/16SNS

3/4

5C-3/4HNS





13/16

5C-13/16HNS





7/8

5C-7/8HNS







5C COLLET SETS
PART# SIZE

5C-7SET

7 Pc. Set - 1/4-1" in 1/8" Incr.

5C-15SET

15 Pc. Set - 1/8-1" in 1/16" Incr.

5C-17SET

17 Pc. Set - 1/16" - 1-1/16" in 1/16" Incr.

5C-33SET

33 Pc. Set - 1/16" - 1-1/16" in 1/32" Incr.

5C-65SET

65 Pc. Set - 1/16" - 1-1/16" in 1/64" Incr.

5C ROUND COLLETS - METRIC SIZES
SIZE PART#













SIZE PART#













SIZE PART#













SIZE PART#

3mm

5C-3RNS

9mm

5C-9RNS

15mm

5C-15RNS

21mm

5C-21RNS

4mm

5C-4RNS

10mm

5C-10RNS

16mm

5C-16RNS

22mm

5C-22RNS

5mm

5C-5RNS

11mm

5C-11RNS

17mm

5C-17RNS

23mm

5C-23RNS

6mm

5C-6RNS

12mm

5C-12RNS

18mm

5C-18RNS

24mm

5C-24RNS

7mm

5C-7RNS

13mm

5C-13RNS

19mm

5C-19RNS

25mm

5C-25RNS

8mm

5C-8RNS

14mm

5C-14RNS

20mm

5C-20RNS

26mm

5C-26RNS
