Double Pin Floating Holder

Double Pin Floating Holder
RECOMMENDED FOR REAMING
  • FLOATS APPROXIMATELY .004" OFF CENTER (.008" TOTAL) TO COMPENSATE FOR BOTH PARALLEL AND ANGULAR MISALIGNMENTS.
  • IDEAL FOR REAMING ON MACHINING CENTERS OR OTHER MACHINES WHERE MISALIGNMENTS ARE NOT EXCESSIVE.

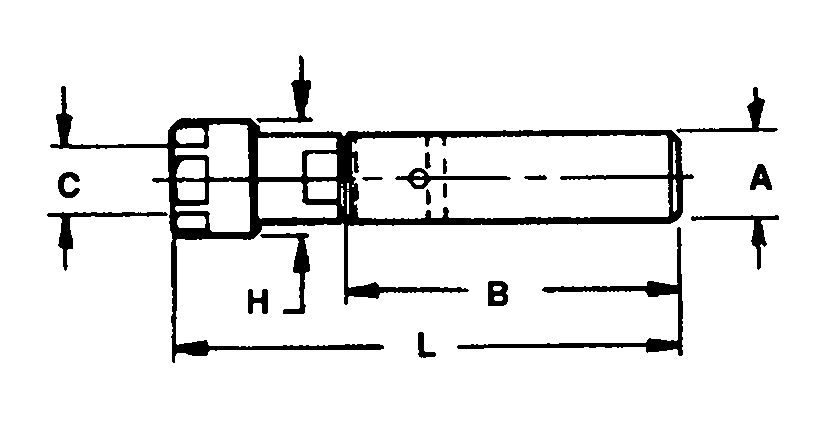

C

CAPACITY

COLLET

SERIES



A



B



L

H

HEX



CAT. NO.

1/32-1/4

300

1/2

2-1/2

4.03

5/8

SS050DP308403

1/32-1/4

300

3/4

2-1/2

4.03

5/8

SS075DP308403

3/64-25/64

200

3/4

2-7/8

4.48

7/8

SS075DP208448

3/64-25/64

200

1"

3"

4.48

7/8

SS100DP208448

1/32-1/4

300

1"

2-1/2

4.03

5/8

SS100DP308403

3/64-9/16

100

1"

3-1/2

5.62

1-1/8

SS100DP108562

3/64-3/4

180

1-1/4

4-1/2

6.96

1-3/8

SS125DP188696
