Double Ended Swiss Collet Chucks

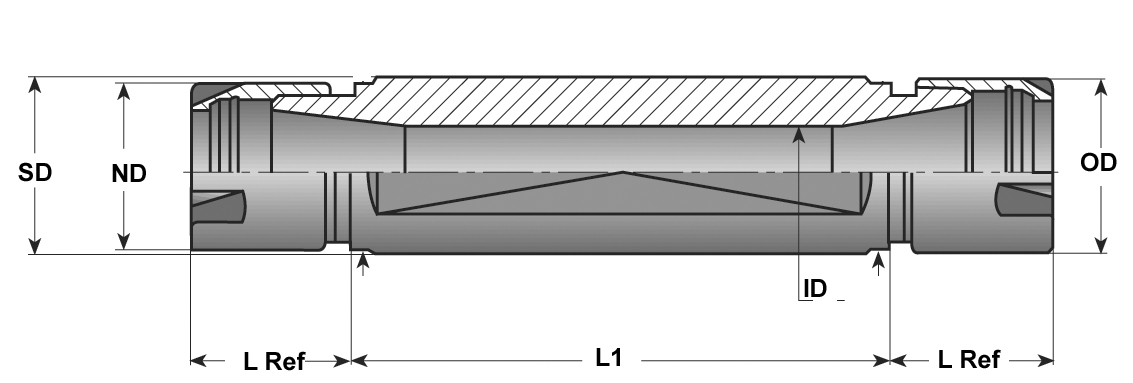

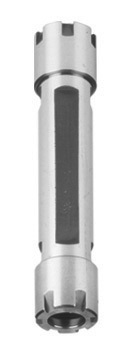

Double Ended Collet Chucks for Swiss Machines
| CAT. NO. | ND | SD | ID | L1 | L | MACHINE TYPE | COLLET | CAPACITY |
|
.630 |
.750 |
.295 |
2.756 |
.787 |
CITIZEN |
ER11 |
1/16 to 1/4 |
|
|
.866 |
.750 |
.413 |
2.165 |
1.024 |
CITIZEN STAR |
ER16 |
1/16 to 13/32 |
|
|
.866 |
1.000 |
.413 |
2.441 |
1.102 |
ER16 |
1/16 to 13/32 |
||
|
METRIC |
||||||||
|
16 |
16 |
7.5 |
50 |
20 |
CITIZEN CITIZEN |
ER11 |
0.5 to 7.0 MM |
|
|
16 |
20 |
7.5 |
30 |
20 |
ER11 |
0.5 to 7.0 MM |
||
|
16 |
20 |
7.5 |
50 |
20 |
ER11 |
0.5 to 7.0 MM |
||
|
22 |
20 |
10.5 |
55 |
26 |
CITIZEN STAR STAR
|
ER16 |
0.5 to 10.0 MM |
|
|
22 |
22 |
10.5 |
55 |
28 |
ER16 |
0.5 to 10.0 MM |
||
|
22 |
22 |
10.5 |
75 |
28 |
ER16 |
0.5 to 10.0 MM |
||
|
22 |
25 |
10.5 |
62 |
28 |
ER16 |
0.5 to 10.0 MM |
||
|
28 |
32 |
13.5 |
55 |
28 |
STAR STAR |
ER20 |
1.0 to 13.0 MM |
|
|
28 |
32 |
13.5 |
75 |
28 |
ER20 |
1.0 to 13.0 MM |
||

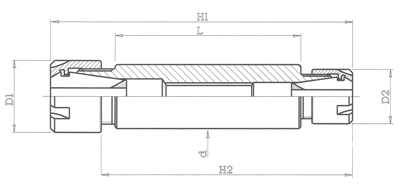

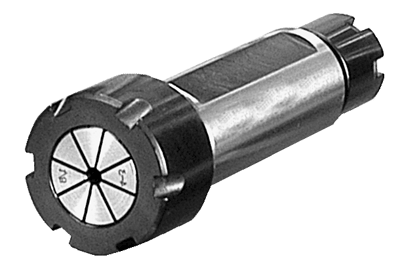

Double Ended Swiss ER Collet Chucks with Different Series ER Collets on Each End
| COLLET | COLLET RANGE | COLLET RANGE |
| SERIES | ENGLISH | METRIC |
| ER8 | 1 TO 5 | |
| ER11 | 1/16 TO 1/4 | 1 TO 7 |
| ER16 | 1/16 TO 13/32 | 1 TO 10 |
| ER20 | 1/16 TO 1/2 | 1 TO 13 |
| ER25 | 1/8 TO 5/8 | 2 TO 16 |
| ER32 | 3/32 TO 3/4 | 3 TO 20 |
| ER40 | 1/8 TO 1" | 4 TO 26 |
| Shank | Collet | Nut | Wrench | Collet | Nut | Wrench | Part | |||||
| Dia. | L | H1 | H2 | D1 | D1 | D1 | D1 | D2 | D2 | D2 | D2 | No. |
| 3/4 | 50 | 85 | 68 | ER16 | 22 | ER16M | ER16MW | ER11 | 16 | ER11M | ER11MW | SS075DEER16-11 |
| 3/4 | 50 | 91 | 72 | ER20 | 28 | ER20M | ER20MW | ER11 | 16 | ER11M | ER11MW | SS075DEER20-11 |
| 20MM | 50 | 85 | 68 | ER16 | 22 | ER16M | ER16MW | ER11 | 16 | ER11M | ER11MW | SS20DEER16-11 |
| 20MM | 50 | 91 | 72 | ER20 | 28 | ER20M | ER20MW | ER11 | 16 | ER11M | ER11MW | SS20DEER20-11 |
| 22MM | 45 | 90 | 71 | ER20 | 28 | ER20M | ER20MW | ER16 | 22 | ER16M | ER16MW | SS22DEER20-16 |
| 22MM | 60 | 105 | 86 | ER20 | 28 | ER20M | ER20MW | ER16 | 22 | ER16M | ER16MW | SS22DEER20-16L |
| 25MM | 45 | 90 | 71 | ER20 | 28 | ER20M | ER20MW | ER16 | 22 | ER16M | ER16MW | SS25DEER20-16 |
| 25MM | 60 | 105 | 86 | ER20 | 28 | ER20M | ER20MW | ER16 | 22 | ER16M | ER16MW | SS25DEER20-16L |
| 25MM | 45 | 91 | 71 | ER25 | 35 | ER25M | ER25MW | ER16 | 22 | ER16M | ER16MW | SS25DEER25-16 |
| 25MM | 60 | 106 | 86 | ER25 | 35 | ER25M | ER25MW | ER16 | 22 | ER16M | ER16MW | SS25DEER25-16L |
| 32MM | 60 | 108 | 88 | ER25 | 35 | ER25M | ER25MW | ER20 | 28 | ER20M | ER20MW | SS32DEER25-20 |
