Collet Chucks for STAR and HANWHA Sub Spindles (Backworking)

CAN BE ORDERED AS A STANDARD COLLET CHUCK OR WITHOUT THE COLLET NUT FOR USE WITH QUICK CHANGE HEAD ASSEMBLIES

Collet Chucks for STAR and HANWHA Sub Spindles
MACHINE COLLET COLLET PROJECTION* COOLANT  CAT#  WITH CAT#  W/O SERIES# SEE
MAKE SERIES RANGE W/O NUT PORT COLLET NUT COLLET NUT HEAD ASSY PHOTO

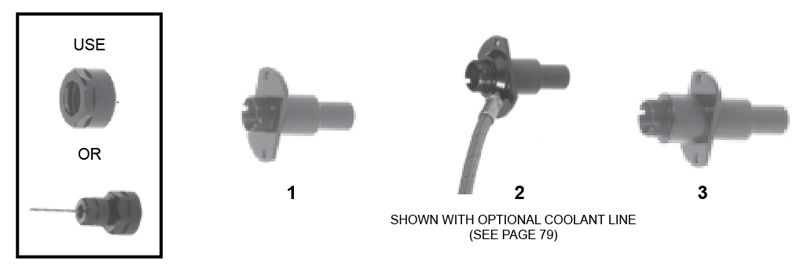

STAR ER16 1/16 - 13/32 0.47 NO STER16470 STER16470P ER11S 1
STAR ER16 1/16 - 13/32 0.75 YES STER16750 STER16750P ER11S 2
STAR ER16 1/16 - 13/32 1.25 YES STER161250 STER161250P ER11S 3

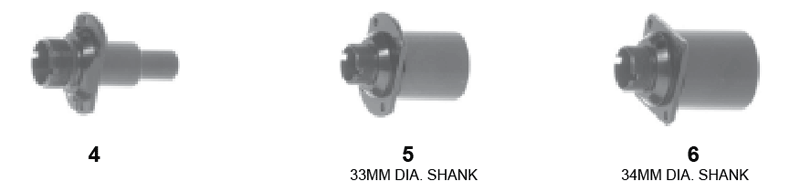

STAR ER20 1/16 - 1/2 0.97 YES STER20970 STER20970P ER16S 4
HANWHA ER16 1/16 - 13/32 0.75 YES HAER1633MM HAER1633MMP ER11S 5
HANWHA ER16 1/16 - 13/32 0.75 YES HAER1634MM HAER1634MMP ER11S 6

* ADD APPROX. .420 TO PROJECTION LENGTH WITH COLLET & NUT INSTALLED

Collet Chucks for STAR and HANWHA Sub Spindles

Straight Shank Adapter for STAR Sub Spindle with 1/2" I.D. and Coolant Port

Collet Chucks for STAR and HANWHA Sub Spindles
CAT NO.
STSS0500
