Spot Drill Holders and Inserts

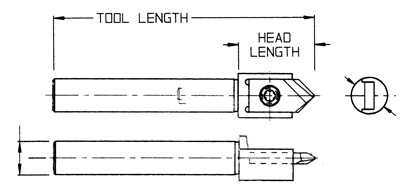

Inserted Toolholders for Spot Drilling

Inserted Toolholders for Spot Drilling

• THREE FLAT POINT TYPES AVAILABLE
   .005 (FINE) / .015 (MEDIUM) / .034 (HEAVY)
• REPEATABILITY WITHIN +/-.0005
• AVAILABLE IN CARBIDE AND T15PM TIN COATED
• MINIMUM MACHINE DOWN TIME
• LEFT HAND AVAILABLE
• SPECIAL ANGLED INSERTS AVAILABLE (PRICE ON APPLICATION)

SERIES #4 TOOL SHANK HEAD HEAD
TOOLHOLDER# LENGTH DIA. DIA. LENGTH
CDH2-250-2.0 2.0 .250 .375 .690
CDH2-375-1.5 1.5 .375 ---- ----
CDH2-375-2.5 2.5 .375 ---- ----
CDH2-500-2.0 2.0 .500 ---- ----
CDH2-500-2.5 2.5 .500 ---- ----
CDH2-625-5.0 5.0 .625 ---- ----
CDH2-750-5.0 5.0 .750 ---- ----
CDH2-1.000-5.0 5.0 1.000 ---- ----
CDH2-10MM-1.5 1.5 10MM ---- ----
CDH2-10MM-2.5 2.5 10MM ---- ----
SERIES #2 SPOT DRILLING INSERTS -  .250 BODY DIAMETER
POINT POINT MICROGRAIN CARBIDE T15PM H.S.S.
ANGLE FLAT TIN COATED INSERT# TIN COATED INSERT#
82° .005 2-82-005-MICTIN 2-82-005-PTIN
82° .015 2-82-015-MICTIN 2-82-015-PTIN
90° .005 2-90-005-MICTIN 2-90-005-PTIN
90° .015 2-90-015-MICTIN 2-90-015-PTIN
120° .005 2-120-005-MICTIN 2-120-005-PTIN
120° .015 2-120-015-MICTIN 2-120-015-PTIN
SCREW# DAV-CSK-SCR  /  WRENCH# DAV-CSK-WR
SERIES #3 TOOL SHANK HEAD HEAD
TOOLHOLDER# LENGTH DIA. DIA. LENGTH
SDH3-375-2.0 2.0 .375 .500 1.100
SDH3-375-3.0 3.0 .375 .500 1.100
SDH3-500-2.0 2.0 .500 ---- ----
SDH3-500-3.0 3.0 .500 ---- ----
SDH3-625-3.0 3.0 .625 ---- ----
SDH3-625-5.0 5.0 .625 ---- ----
SDH3-750-3.5 3.5 .750 ---- ----
SDH3-750-5.0 5.0 .750 ---- ----
SDH3-1.000-5.0 5.0 1.000 ---- ----
SDH3-10MM-2.0 2.0 10MM .500 1.100
SDH3-10MM-3.0 3.0 10MM .500 1.100
SDH3-16MM-3.0 3.0 16MM ---- ----
SERIES #3 SPOT DRILLING INSERTS -  .375 BODY DIAMETER
POINT POINT MICROGRAIN CARBIDE T15PM H.S.S.
ANGLE FLAT TIN COATED INSERT# TIN COATED INSERT#
82° .005 3-82-005-MICTIN 3-82-005-PTIN
82° .015 3-82-015-MICTIN 3-82-015-PTIN
82° .034 3-82-034-MICTIN 3-82-034-PTIN
90° .005 3-90-005-MICTIN 3-90-005-PTIN
90° .015 3-90-015-MICTIN 3-90-015-PTIN
90° .034 3-90-034-MICTIN 3-90-034-PTIN
120° .005 3-120-005-MICTIN 3-120-005-PTIN
120° .015 3-120-015-MICTIN 3-120-015-PTIN
120° .034 3-120-034-MICTIN 3-120-034-PTIN
SCREW# STCC-4110  /  WRENCH# STCC-4112
SERIES #4 TOOL SHANK HEAD HEAD
TOOLHOLDER# LENGTH DIA. DIA. LENGTH
CDH4-375-3.5 3.5 .375 .750 1.100
CDH4-500-2.5 2.5 .500 .750 1.100
CDH4-500-3.5 3.5 .500 .750 1.100
CDH4-625-2.5 2.5 .625 .750 1.100
CDH4-625-3.5 2.5 .625 .750 1.100
CDH4-625-5.0 5.0 .625 .750 1.100
CDH4-750-2.5 2.5 .750 ---- ----
CDH4-750-3.5 3.5 .750 ---- ----
CDH4-750-5.0 5.0 .750 ---- ----
CDH4-1.000-5.0 5.0 1.000 ---- ----
SERIES #4 SPOT DRILLING INSERTS -  .500 BODY DIAMETER
POINT POINT MICROGRAIN CARBIDE T15PM H.S.S.
ANGLE FLAT TIN COATED INSERT# TIN COATED INSERT#
82° .015 4-82-015-MICTIN 4-82-015-PTIN
82° .034 4-82-034-MICTIN 4-82-034-PTIN
90° .015 4-90-015-MICTIN 4-90-015-PTIN
90° .034 4-90-034-MICTIN 4-90-034-PTIN
120° .015 4-120-015-MICTIN 4-120-015-PTIN
120° .034 4-120-034-MICTIN 4-120-034-PTIN
SCREW# STCC-4111  /  WRENCH# STCC-4112

Screw is supplied with holder.
Inserts and wrenches are sold separately.

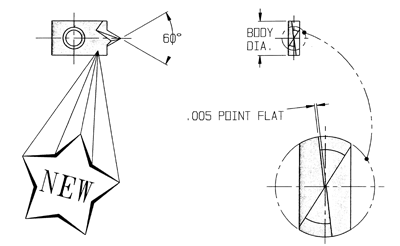

60° Flute Radial Relief Spot Drill Inserts

PATENT PENDING
The speed for these two inserts needs to be between 5000 - 8000 R.PM. and the feed rate should be between .500" - 1.000" per minute.

New! 60° Flute Radial Relief Spot Drill Inserts for Above Holders


SERIES #2 SPOT DRILLING INSERTS -  .250 BODY DIAMETER
POINT POINT MICROGRAIN CARBIDE T15PM H.S.S.
ANGLE FLAT TIN COATED INSERT# TIN COATED INSERT#
60° .005 2-60-005-MICTIN 2-60-005-PTIN

SERIES #3 SPOT DRILLING INSERTS -  .375 BODY DIAMETER
POINT POINT MICROGRAIN CARBIDE T15PM H.S.S.
ANGLE FLAT TIN COATED INSERT# TIN COATED INSERT#
60° .005 3-60-005-MICTIN 3-60-005-PTIN

60° INCLUDED RADIAL SPOT DRILL INSERT ADVANTAGES
• The 60° included angle has radial and conical relief that is offset
to give the cutting edge maximum strength plus clearance.
• These two spot drill inserts are center cutting with the ability
to spot material starting with an outside diameter of .010"
