Miscellaneous Tooling

Saw Arbor

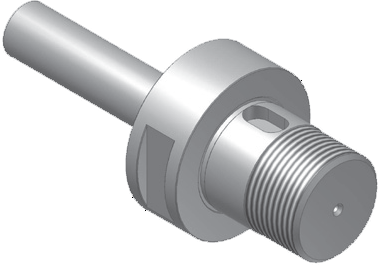

Saw Arbor

Item No.	Tool Shank	Saw Arbor Shank
I920254100A	Ø20mm	Ø25.4mm
I913254100A	Ø13mm	Ø25.4mm

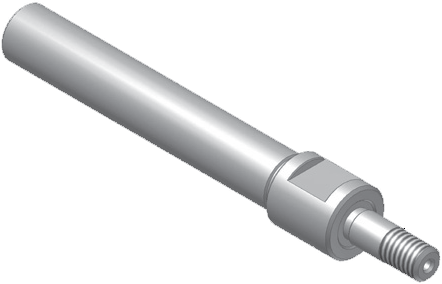

Saw Arbor

Item No.	Tool Shank	Saw Arbor Shank
I907050060	Ø7mm	Ø5mm
I907060060	Ø7mm	Ø6mm
I910060090	Ø10mm	Ø6mm
I910127070	Ø10mm	Ø12.7mm

Saw Arbor

Item No.	Tool Clamping	Saw Arbor Shank
I91606065	ER16	Ø6mm
I91106065	ER11	Ø6mm

Wedge Clamp

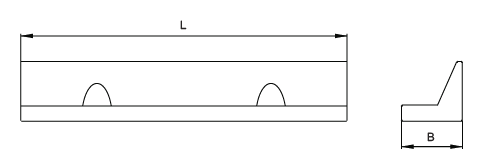

Wedge Clamp (Diagram)

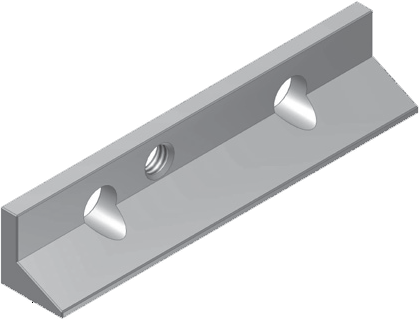

KSR2000080

Length (L)	Height (B)	Thickness
75	14	3.5

KSR2000080

Length (L)	Height (B)	Thickness
65	14	3.5

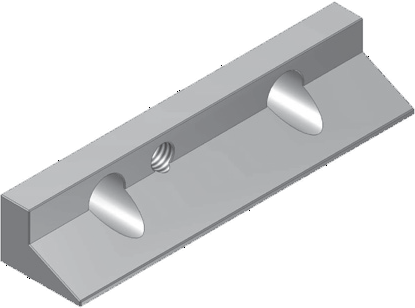

KSR2000082

Length (L)	Height (B)	Thickness
75	13	6.5

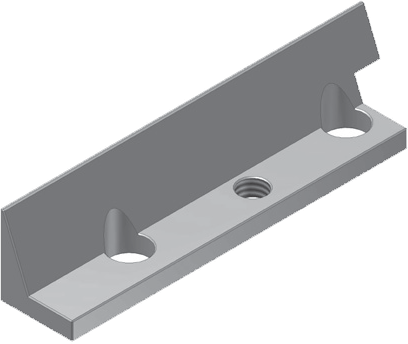

KSV320000

Length (L)	Height (B)	Thickness
70	14	3.5

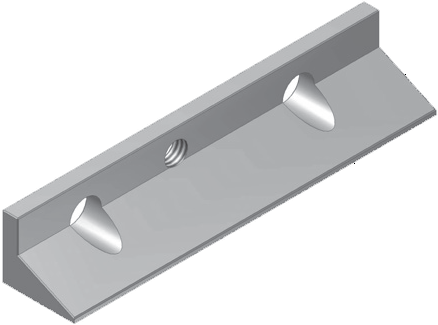

KSV320001

Length (L)	Height (B)	Thickness
80	14	3.5

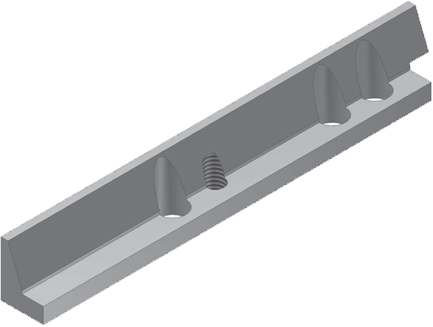

KSLC200009

Length (L)	Height (B)	Thickness
115	11	4.5

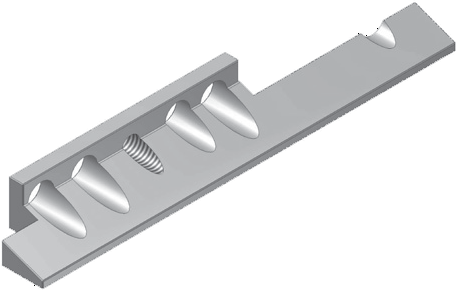

KSLC32007

Length (L)	Height (B)	Thickness
115	12.5	4

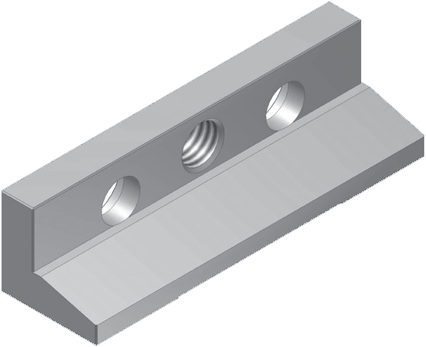

KTC3000007

Length (L)	Height (B)	Thickness
60	18	6

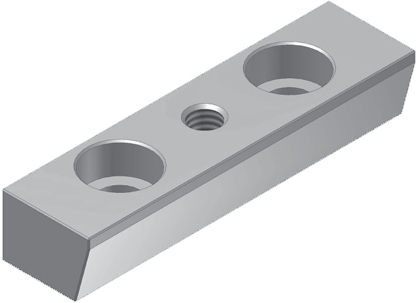

KTC3000008

Length (L)	Height (B)	Thickness
58	15.6	11

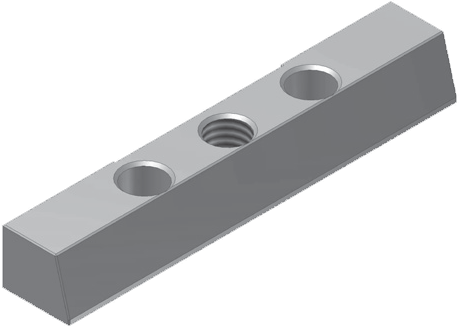

KTC206000

Length (L)	Height (B)	Thickness
70	15	10

KTC206000

Length (L)	Height (B)	Thickness
70	12	10

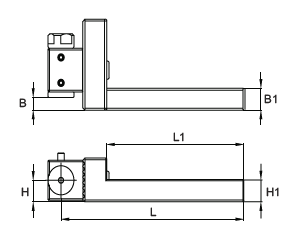

Adjustable Boring Bar Sleeve

Adjustable Boring Bar Sleeve

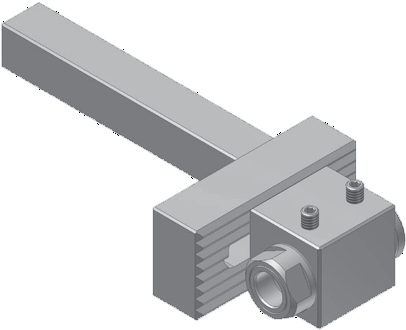

ATE140000

L	L₁	H	H₁	B	B₁
113.3	85	12	12	4~23	12
