Tornos Swiss Tooling

GAMMA20
TOOLING FOR GANG TOOL POST

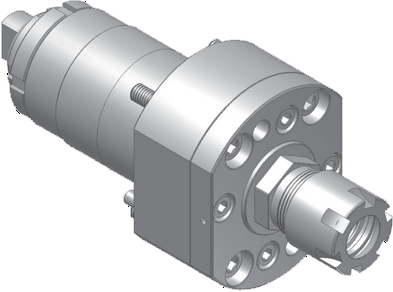

TSS161000
TSS161000
Cross drilling/milling unit
Ratio 1:1
RPM Max. 8000
Tool Clamping ER16M

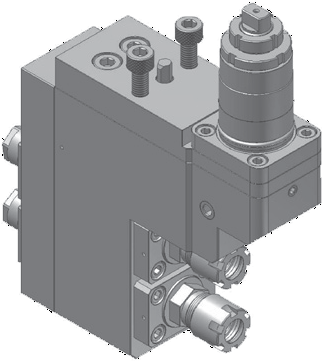

TSS562000
TSS562000
2 spindle drilling/milling unit
Speed Ratio 1:1
RPM Max. 8000
Tool Clamping Front ER16M
Tool Clamping Back ER11A

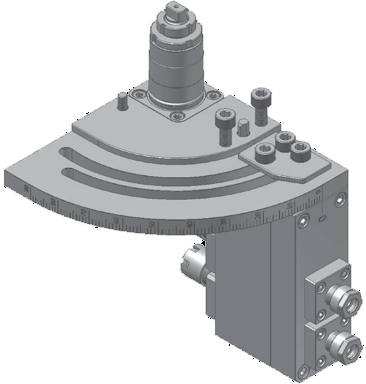

TSS562100
TSS562100
2 spindle drilling/milling unit
Speed Ratio 1:1
RPM Max. 8000
Tool Clamping Front ER16M
Tool Clamping Back ER11A
Angle Adjustment 0~90°

DELTA38
TOOLING FOR GANG TOOL POST

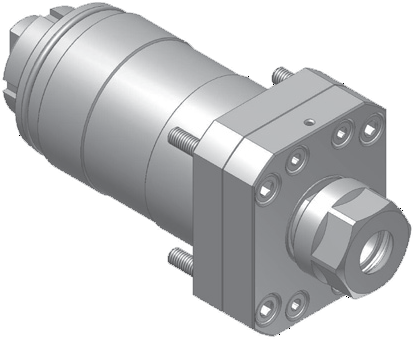

TSB246100
TSB246100
Cross drilling/milling unit
Speed Ratio 1:1
RPM Max. 6000
Tool Clamping ER16A
Tsugami Item No. 3268-T051

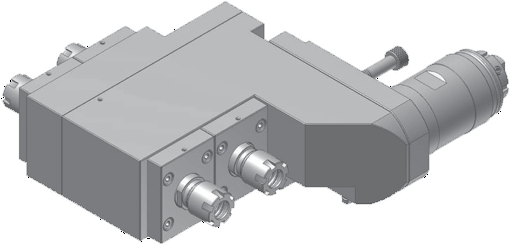

TSB546200
TSB546200
2 spindle drilling/milling unit
Speed Ratio 1:1
RPM Max. 6000
Tool Clamping ER16M
Tsugami Item No. 3282-Y901

GAMMA20
TOOLING FOR GANG TOOL POST

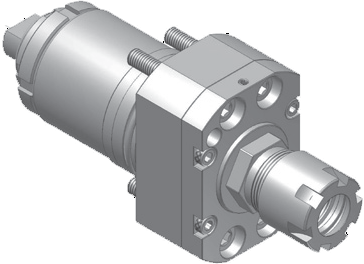

TSS761000
TSS761000
Drilling/milling unit
Speed Ratio 1:1
RPM Max. 8000
Tool Clamping ER16M

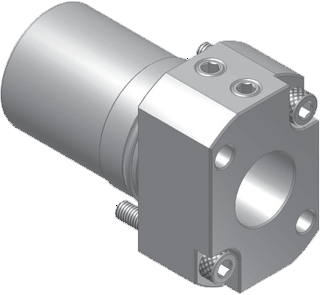

TSS601000
TSS601000
Tool adaptor
Tool Shank Ø35.0mm
Sleeve Shank Ø20.0mm

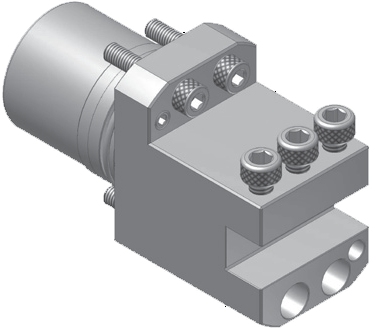

TSS620100
TSS620100
Turning tool holder
Tool Shank Ø35.0mm
Bite Holder Shank 12x12mm

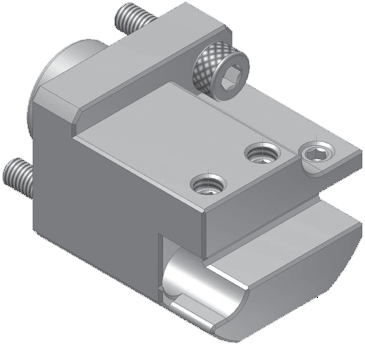

TSS620100-1
TSS620100-1
Turning tool holder
Tool Shank Ø35.0mm
Bite Holder Shank 10x10mm

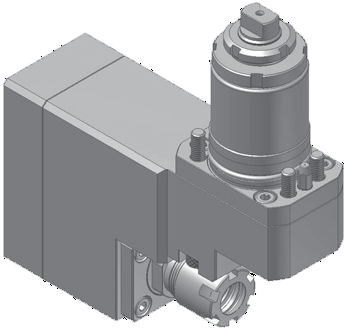

TSS861000
TSS861000
Slotting (Cross drilling/milling) unit
Speed Ratio 1:1
RPM Max. 6000
Tool Clamping ER16M

DELTA38
TOOLING FOR GANG TOOL POST

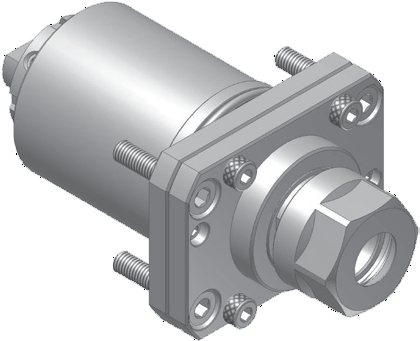

TSB746100
TSB746100
Drilling/milling unit
Speed Ratio 1:1
RPM Max. 6000
Tool Clamping ER16A
Tsugami Item No. 3282-Y041
TSB640100
TSB640100
Tool adaptor
Tool Shank Ø42.0mm
Sleeve Shank Ø25.0mm
Tsugami Item No. 3282-Y211
