Wire EDM Machining Fixtures for Resharpenable and Throwaway Inserts

Wire EDM Machining Fixtures for Resharpenable and Throwaway Inserts

  • Made of heat treated stainless steel.
  • Supplied with clamps for inserts and backup spacers.
  • Locates on recess in back side of insert for EDMing of all four sides.
  • Reversible for left hand cut.
CATALOG NO.
(INSERT WIDTHS)
 NUMBER OF INSERTS
  TYPE
 OFFSET
ANGLE
RQCWF
(1.250 TO 2.750)
 3 - 3/8" or
3 + 1 SPACER
 SHARPENABLE
  17°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY

RQCWF00
(.375 TO 1.750)
 3 - 5/16" or
3 + 1 SPACER
 SHARPENABLE
  17°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY

RQCWFDS
(1.125)
 3 - 3/8" or
3 + 1 SPACER
 SHARPENABLE
  2-1/2°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY

RQCWFDS-0
(1.750)
 3 - 3/8" or
3 + 1 SPACER
 SHARPENABLE
  0°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY


EDM Fixtures Also Available For:
Inserts Angle Catalog No.
3/8 INSERTS 12° RQCWF-3/8
5/16 INSERTS 12° RQCWF00-5/16
Insert Resharpening Fixtures

Insert Resharpening Fixtures

  • For resharpening top surface of inserts.
  • Flexible jaw clamps insert securely.
  • For use on surface grinder with cup or dish wheel.
CAT. NO.
 INSERT WIDTH/TYPE
RQCSF
 1-1/4" FORM
RQCSF-W
 1-3/4" FORM/SHAVE
RQCSF00
 3/4" FORM
RQCSF-DS
 1-1/8" FORM/SHAVE
RQCSF00-N
 3/8" FORM
RQCSF-CO
 .130 FORM
RQCSF-XW
 2-1/4" FORM
RQCSF-WW
 2-3/4" FORM
Base Plate and Fixtures for Multiple EDMing of Inserts and Dovetail Tools

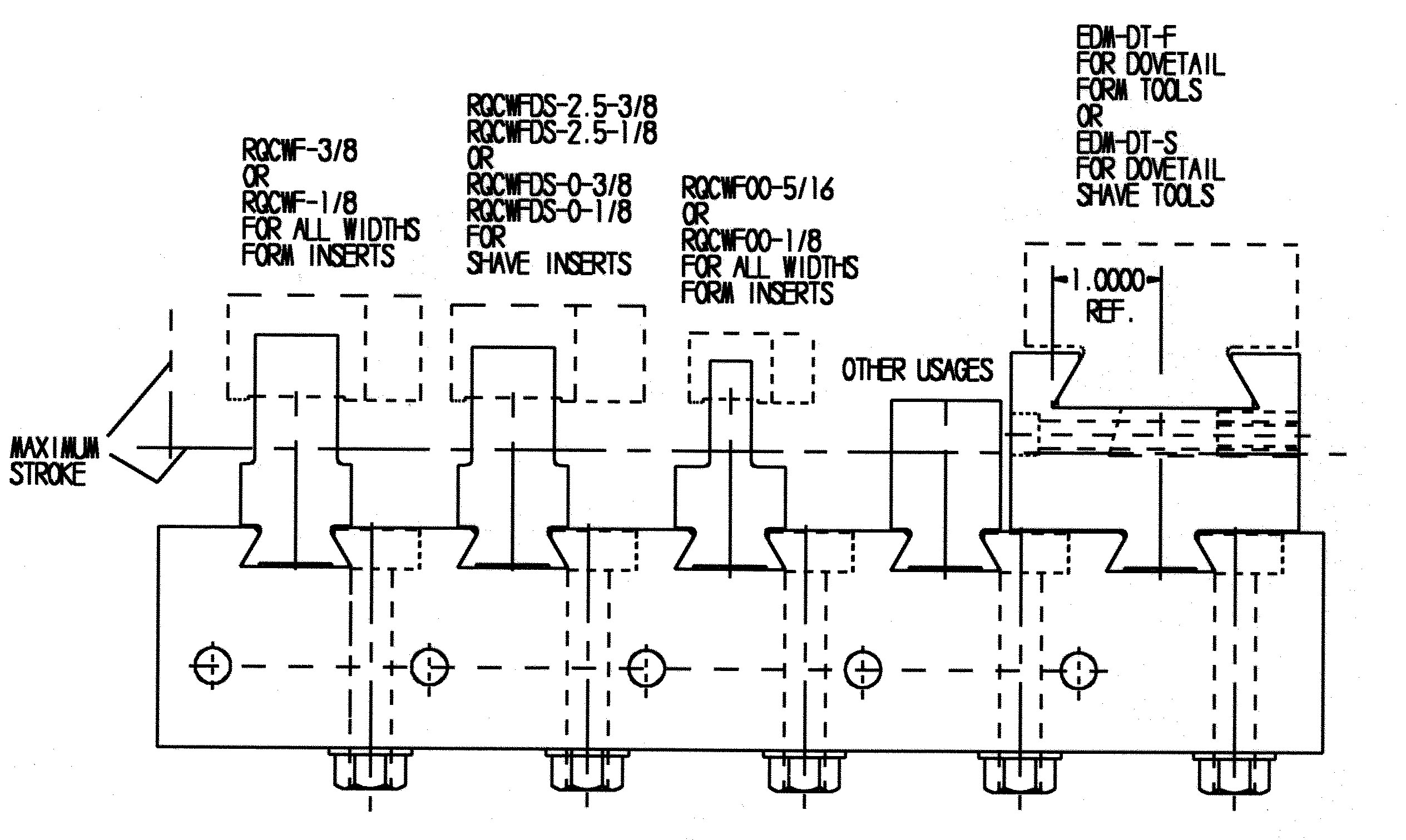

Base Plate and Fixtures for Multiple EDMing of Inserts and Dovetail Tools - Diagram

Base Plate Cat. No. RQCEDM-5A

Base Plate and Fixtures for Multiple EDMing of Inserts and Dovetail Tools

  • Made of heat treated stainless steel.
  • Supplied with clamps for inserts and backup spacers.
  • Locates on recess in back side of insert for EDMing of all four sides.
  • Reversible for left hand cut.
CATALOG NO.
(INSERT WIDTHS)
 NUMBER OF
 INSERTS

 TYPE

 OFFSET
ANGLE
RQCWF-3/8
(1.250 TO 2.750)
 3 - 3/8" or
3 + 1 SPACER
 SHARPENABLE
  17°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY

RQCWF00-5/16
(.375 TO 1.750)
 3 - 5/16" or
3 + 1 SPACER
 SHARPENABLE
  17°
  8-1/8" or
6 + 1 BACKUP
 THROW-AWAY
RQCWFDS-2.5-3/8
(1.125)
 3 - 3/8" or
3 + 1 SPACER
8-1/8" or
6 + 1 BACKUP
 SHARPENABLE

THROW-AWAY
  2-1/2°
RQCWFDS-0-3/8
(1.750)
 3 - 3/8" or
3 + 1 SPACER
 SHARPENABLE
  0°

 8-1/8" or
6 + 1 BACKUP
 THROW-AWAY


  • Holds any five fixtures for unattended operation.
  • EDM fixtures are dovetail mounted at accurate center to center location to facilitate programming.
  • Made of heat treated stainless steel.
  • Machine mounting holes located to suit your EDM machine.
Base Plate Fixtures EDM Base S Base Plate Fixtures EDM Base F Base Plate Fixtures EDM Base DTV
Cat. No. Cat. No. Cat. No.
EDM-DT-S EDM-DT-F EDM-DT-V
