Insert Blanks for Somma RQC
Forming & Shaving System

Contact Somma Engineering Department for Inserts
 Custom Designed & Manufactured based on your part print
or Purchase the Resharpenable and Throwaway RQC Insert Blanks Listed Below
Resharpenable Insert

Resharpenable Insert

Spacer

Spacer

Resharpenable EDM Ready Blanks for Those with EDM Facilities

  • Inserts can be resharpened by grinding material from top surface and reused without resetting.
  • Inserts can be resharpened 20 to 30 times.
  • Inserts are ground to 5/16" or 3/8" thickness only.
  • Blanks oversize on width and length for EDMing.
  • Blanks are recessed on back end for mounting in EDM fixture.
  • Adaptable for "Datum Point" Applications
RESHARPENABLE INSERT SIZE
*5/16 X 3/4 5/16 X 1-1/8 3/8 X 1-1/4 3/8 X 1-3/4 3/8 X 2-1/4 3/8 X 2-3/4
C2 MICRO RI-.75MIC RI-1.125MIC RI-1.250MIC RI-1.75MIC RI-2.25MIC RI-2.75MIC
C6 MICRO RI-.75C6 RI-1.125C6 RI-1.250C6 RI-1.75C6 RI-2.25C6 RI-2.75C6
76 PM HSS RI-.75-A RI-1.125-A RI-1.250-A RI-1.75-A RI-2.25-A RI-2.75-A
MAXAMET RI-.75-M RI-1.125-M RI-1.250-M RI-1.75-M RI-2.25-M RI-2.75-M
SPACER   RI-.75-3/32 RI-1.125-3/32 RI-1.250-1/8 RI-1.75-1/8 RI-2.25-1/8 RI-2.75-1/8

*Note: 5/16 x 3/4 blanks are used for 5/16 x 3/8 Inserts.
Throwaway Insert

Throwaway Insert

Back-up Anvil

Back-up Anvil

Throwaway EDM Ready Blanks for Those with EDM Facilities

  • For those who don't want to resharpen inserts but still want to enjoy advantages of "RQC" Holders
  • Adaptable for "Datum Point" applications
  • Inserts are ground to 1/8" thickness only.
  • Blanks oversize on width and length for EDMing.
  • Blanks are recessed on back end for mounting in EDM fixture.
THROWAWAY INSERT SIZE
  *1/8 X 3/4 1/8 X 1-1/8 1/8 X 1-1/4 1/8 X 1-3/4 1/8 X 2-1/4 1/8 X 2-3/4
C2 MICRO TA-.75MIC TA-1.25MIC TA-1.25MIC TA-1.75MIC TA-2.25MIC TA-2.75MIC
C6 MICRO TA-.75C6 TA-1.25C6 TA-1.25C6 TA-1.75-C6 - -
76PM HSS  TA-.75-A TA-1.25-A TA-1.25-A TA-1.75-A TA-2.25-A TA-2.75-A
MAXAMET TA-.75-M TA-1.25-M TA-1.25-M TA-1.75-M TA-2.25-M TA-2.75-M
ANVIL BA-.75-3/16 BA-1.125-3/16 BA-1.25-1/4 BA-1.75-1/4** BA-2.25-1/4 BA-2.75-1/4

*Note: 1/8 x 3/4 blanks are used for 1/8 x 3/8 Inserts.
** Note: Use BA-1.75-3/16 for RQCGLD20-W holder.
Custom Designed Throwaway Inserts

Custom Designed Throwaway Inserts

We can custom design Throwaway Inserts with top to bottom clearance.
  • Inserts with top to bottom clearance (see diagram) reduce side rubbing and improves part finish
  • Adaptable for "Datum Point" Applications.
Prices on application for inserts EDM'd to your part print.
Centering Gages for RQC Insert Holders

Centering Gages for RQC Insert Holders

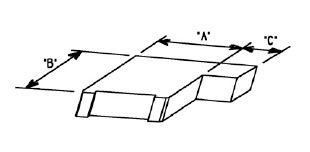

  • Gages are same (B) length as standard inserts.
  • Gages are "L" shaped and overhang holder for easy setting to center.
  • Just clamp in holder and set to center as you would normally.
CAT. NO.

A

B

C

RQCG-5/16

3/4

.630

.500

RQCG-3/8

1-1/4

.956

.500
