Exclusive from Somma

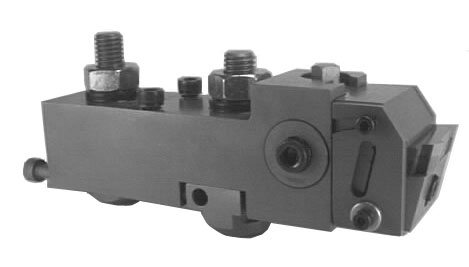

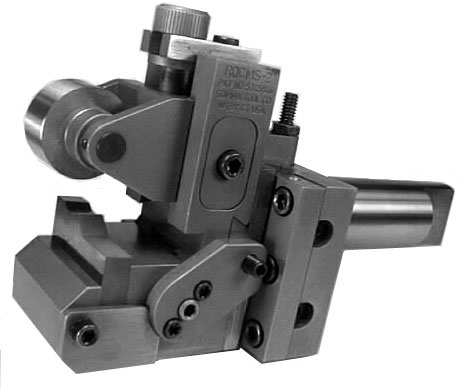

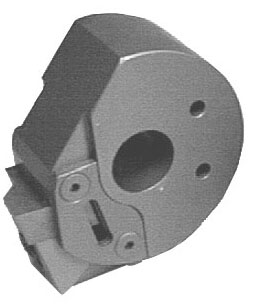

Resharpenable Quick-Change Form and Shave Tool Holders

(Also Available with "Throw-Away" Inserts)

Insert

Spacer

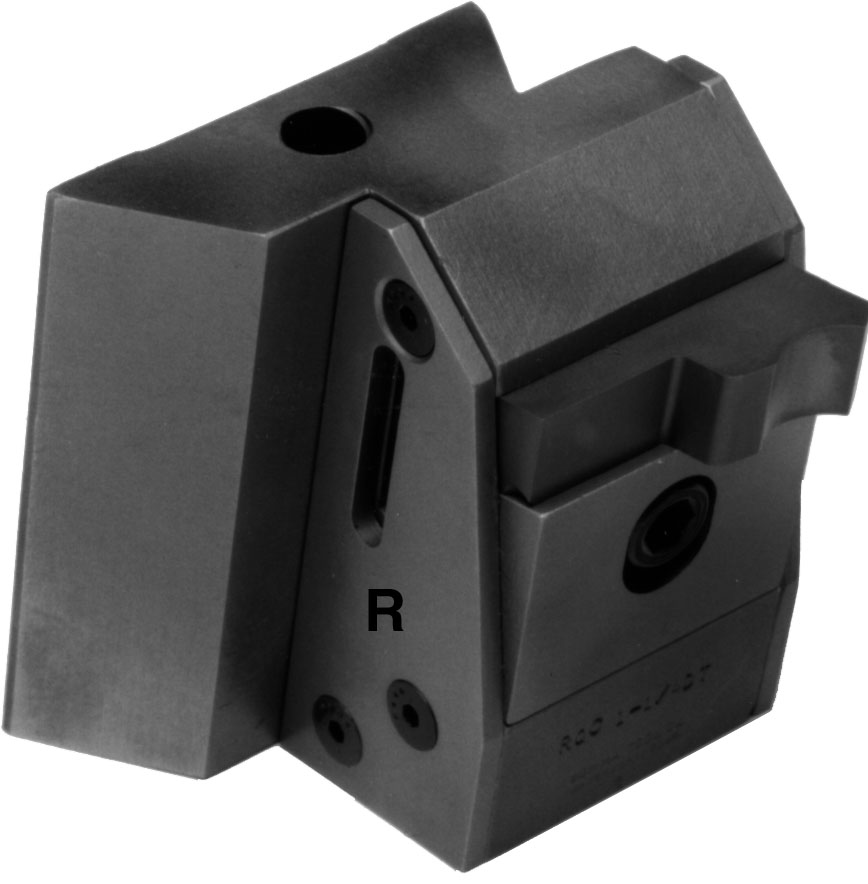

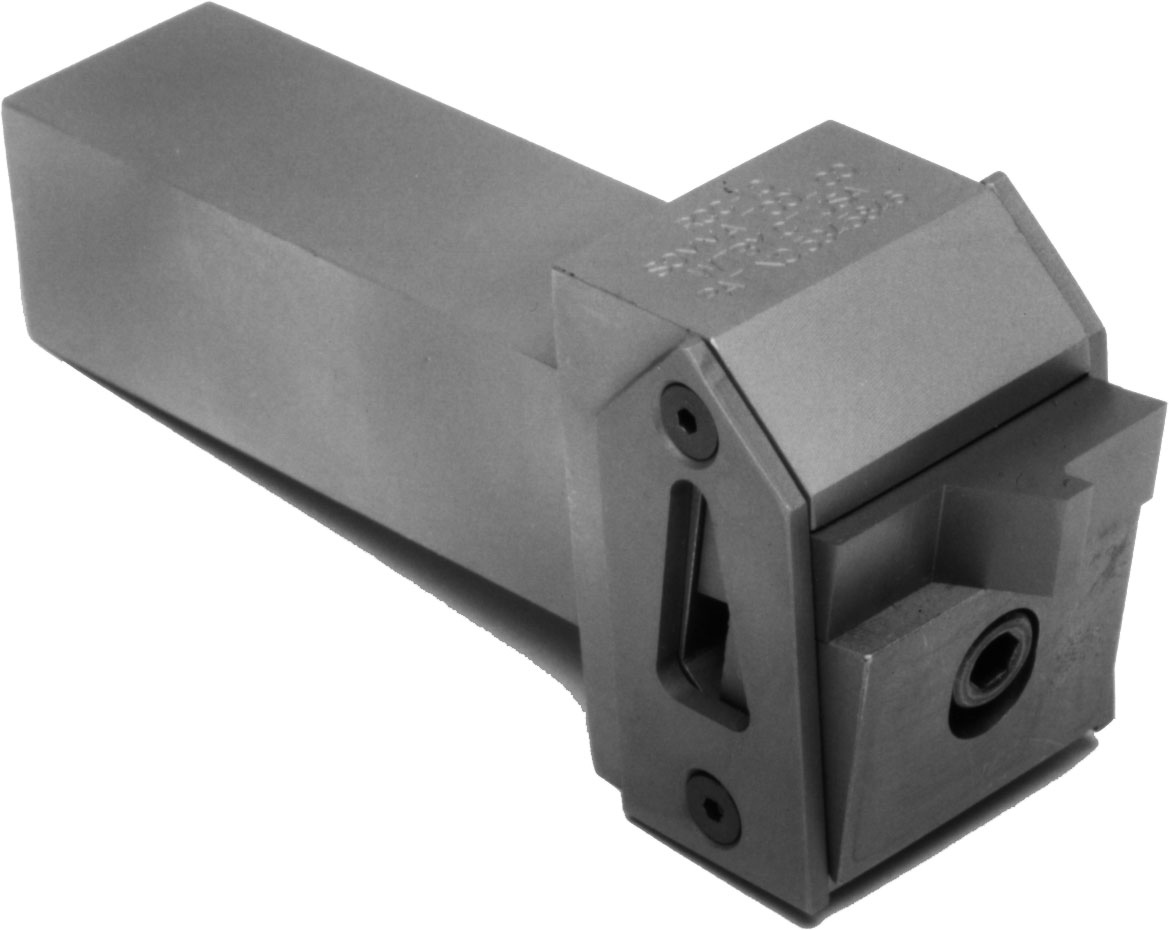

                            Features of Somma Resharpenable Quick Change Insert
							Tool Holders
                            Inserts can be
							  resharpened by grinding material from top surface
							  and reused without resetting.
Inserts can be changed
							  in less than one minute.
Once insert is set to
							  center, it need never be reset.
Once insert is set to
							  proper diameter, it need never be reset.
Lateral positioning of
							  form never changes.
Inserts do not require
							  matching backup anvils for support.
Also available with
							  "throw-away" inserts.


                            Advantages of Resharpenable Quick Change Form Tool
							Inserts
                            Reduces tooling
							  cost—inserts can be resharpened 20 to 30 times
Backup spacers
							  increase insert resharpenability
Less expensive than
							  conventional H.S.S. or brazed carbide form tools
Less expensive than
							  throwaway single usage carbide inserts
Eliminates cost of
							  full length steel backup anvils for each form
Adaptable for "Datum
							  Point" Applications (See Below)



                                Inserts are available in C6 Micrograin Carbide, C2 Micrograin Carbide, 76PM High Speed Steel and Maxamet High Speed Steel.

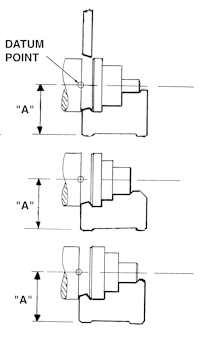

                            "Datum Point" Technology... for speedy job changeovers

                      	        "Datum Point" tooling for screw machines, whereby a
					        family of similar parts can be made by simply changing the
					        form tool, has been made simple with the introduction of
					        Somma's patented "Resharpenable Quick Change" Insert Type
					        Form Tool Holders.

						        Once the insert holder is set to the proper center
					        height and lateral location for one job, it never has to be
					        moved. All that is necessary when changing to a new job is
					        to change the insert.

						        The form on each insert is calculated so that it will
					        produce the diameters and lengths as required for each job
					        and the inserts are mounted into a pocket in the toolholder
					        of controlled width and depth, in relation to which the form
					        of each insert is calculated.

						        Contact Somma to find out how "Datum Point" tooling can
					        work for you!
