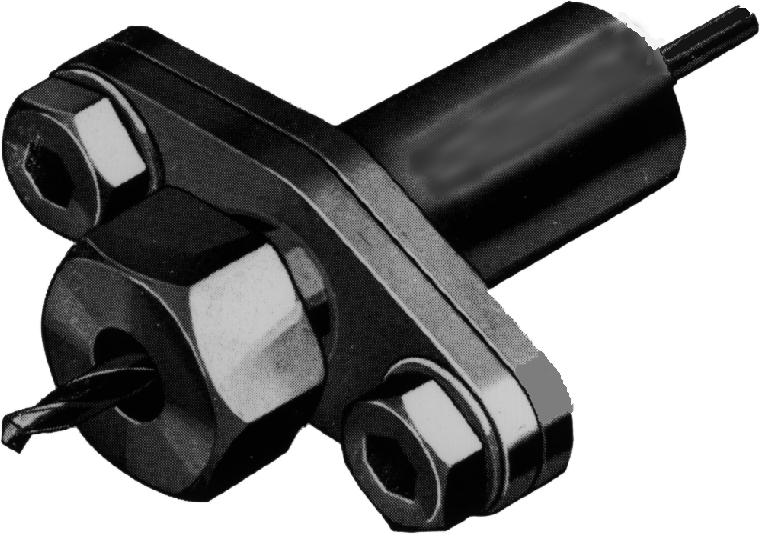

Double Angle Adjustable Flange Drill Holder

Double Angle Adjustable Flange Drill Holder

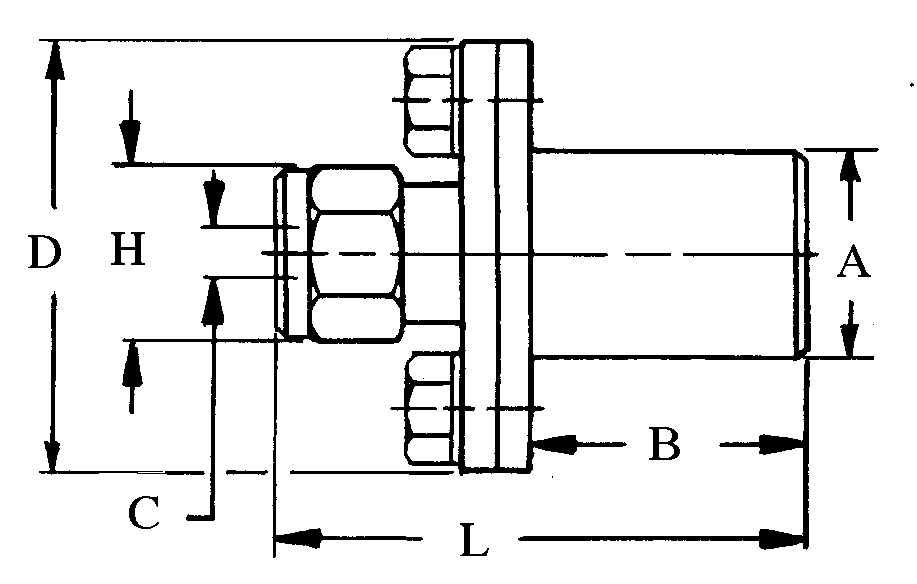

Double Angle Adjustable Flange Drill Holder (Diagram)

RECOMMENDED FOR DRILLING
  • DESIGN ALLOWS FOR THE CORRECTION OF MISALIGNMENT BETWEEN THE SPINDLE AND TURRET CENTERLINES.
  • UNIQUE ADJUSTABLE STOP SCREW ALLOWS DRILLS TO BE PRESET AND PROVIDES THROUGH-COOLANT CAPABILITY.
  • IDEAL FOR TURRET LATHES AND AUTOMATICS.

C

CAPACITY

COLLET

SERIES

 A

 B

 L

H

HEX

 D

 CAT. NO.

 OLD CAT. NO.

1/32-1/4

300

3/4

2.00

2.88

3/4

2"

SS075DAF308288

SS075AF308288

3/64-25/64

200

3/4

1-15/16

3.05

1"

2-5/16

SS075DAF208305

SS075AF208305

3/64-9/16

100

3/4

2-13/32

4.31

1-1/8

3-1/8

SS075DAF108431

SS075AF108431

3/64-9/16

100

1"

2-15/16

4.84

1-1/8

3-1/8

SS100DAF108484

SS100AF108484
