Internal Hex Broaches
with ½" (.500") Dia. Shank x 1-3/4" OAL

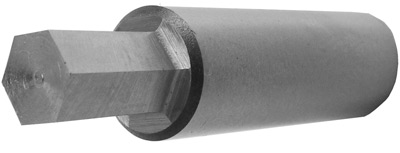

Internal Hex Broaches

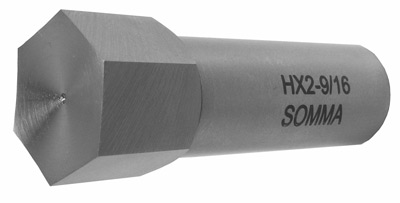

Internal Hex Broaches

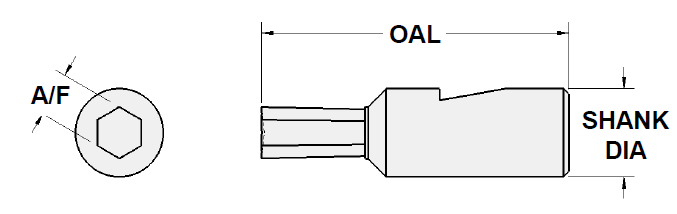

Internal Hex Broaches - Diagram
  • Superior, Hardened FORTE material
  • Ground all over
  • Angular clamping flat prevents pull out
  • Fit all Rotating Broach Tools
  • Available in T15PM H.S.S. (Prices on application)

Metric / Hex, for ORB2/... Holders
NOMINAL
HEX SIZE		 ACTUAL
A/F*		 MAX CUTTING
DEPTH*		 PART NO.
2.0MM .0800 .169 HX2-2.0-F
2.5MM .1002 .211 HX2-2.5-F
3.0MM .1204 .253 HX2-3.0-F
4.0MM .1602 .337 HX2-4.0-F
5.0MM .1997 .420 HX2-5.0-F
6.0MM .2395 .503 HX2-6.0-F
7.0MM .2798 .588 HX2-7.0-F
8.0MM .3187 .670 HX2-8.0-F
9.0MM .3583 .752 HX2-9.0-F
10.0MM .3979 .836 HX2-10.0-F
11.0MM .4376 .873 HX2-11.0-F
12.0MM .4774 .893 HX2-12.0-F
13.0MM .5170 .912 HX2-13.0-F
14.0MM .5566 .969 HX2-14.0-F
15.0MM .5968 .969 HX2-15.0-F
16.0MM .6369 .969 HX2-16.0-F
17.0MM .6770 .969 HX2-17.0-F
18.0MM .7169 .969 HX2-18.0-F
19.0MM .7568 .969 HX2-19.0-F
Inch / Hex, for ORB2/... Holders
NOMINAL
HEX SIZE		 ACTUAL
A/F*		 MAX CUTTING
DEPTH*		 PART NO.
3/32 .0947 .199 HX2-3/32-F
7/64 .1106 .233 HX2-7/64-F
1/8 .1265 .266 HX2-1/8-F
9/64 .1421 .299 HX2-9/64-F
5/32 .1582 .333 HX2-5/32-F
3/16 .1895 .398 HX2-3/16-F
7/32 .2212 .465 HX2-7/32-F
1/4 .2525 .531 HX2-1/4-F
9/32 .2837 .596 HX2-9/32-F
5/16 .3152 .662 HX2-5/16-F
11/32 .3467 .729 HX2-11/32-F
3/8 .3782 .794 HX2-3/8-F
13/32 .4097 .860 HX2-13/32-F
7/16 .4412 .875 HX2-7/16-F
15/32 .4727 .890 HX2-15/32-F
1/2 .5042 .906 HX2-1/2-F
17/32 .5357 .924 HX2-17/32-F
9/16 .5672 .969 HX2-9/16-F
19/32 .5987 .969 HX2-19/32-F
Inch / Hex, for ORB2/... Holders
NOMINAL
HEX SIZE		 ACTUAL
A/F*		 MAX CUTTING
DEPTH*		 PART NO.
5/8 .6302 .969 HX2-5/8-F
21/32 .6617 .969 HX2-21/32-F
11/16 .6932 .969 HX2-11/16-F
23/32 .7237 .969 HX2-23/32-F
3/4 .7562 .969 HX2-3/4-F
