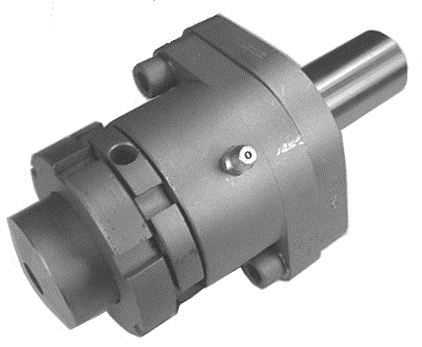

Adjustable External Rotary Broach Tool Holders
This tool is used to produce hexagons, splines or other irregular shapes on external surfaces of the workpiece as it is rotating in the spindle of the machine.
The ORBX00/0.750 & all ORB2 external holders can also be used for internal broaching!
The ORBX00/0.750 & all ORB2 external holders can also be used for internal broaching!

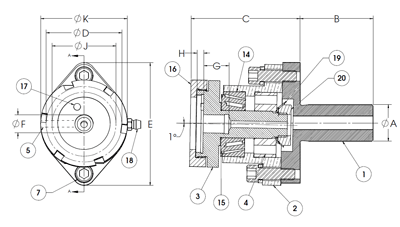

| CAT. NO. | A | B | C | D | E | F | G | H | J | K |
| ORBX00/0.625 | 5/8" | 1-1/2" | 2-1/32" | 1-1/2" | 2-7/16" | 3/8" | .300 | 3/16" | 24MM | 1-5/8" |
| ORBX00/0.750 | 3/4" | 2" | 2-1/2" | 1-1/2" | 2-7/16" | 1/2" | 11/16" | 3/16" | 24MM | 1-5/8" |
| ORBX00/16MM | 16MM | 1-1/2" | 2-1/32" | 1-1/2" | 2-7/16" | 3/8 | .300 | 3/16" | 24MM | 1-5/8" |
| ORBX00/20MM | 20MM | 1-1/2" | 2-1/32" | 1-1/2" | 2-7/16" | 3/8 | .300 | 3/16" | 24MM | 1-5/8" |
| ORBX00/22MM | 22MM | 1-1/2" | 2-1/32" | 1-1/2" | 2-7/16" | 3/8 | .300 | 3/16" | 24MM | 1-5/8" |
| ORBX2/0.750 | 3/4" | 2" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/1.000 | 1" | 2" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/1.250 | 1-1/4" | 3" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/1.500 | 1-1/2" | 3" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/20MM | 20MM | 2" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/22MM | 22MM | 2" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/25MM | 25MM | 2" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBX2/32MM | 32MM | 3" | 2-31/32" | 2-3/8" | 3-5/16" | 1/2" | .700 | 3/16" | 40MM | 2-3/8" |
| ORBXHD/1.500 | 1-1/2" | 3" | 4-3/4" | 3-1/2" | 4-17/32" | -- | -- | 3/16" | 2-1/2" | 3-5/8" |
| ORBXHD/1.750 | 1-3/4" | 3" | 4-3/4" | 3-1/2" | 4-17/32" | -- | -- | 3/16" | 2-1/2" | 3-5/8" |
| ORBXHD/32MM | 32MM | 3" | 4-3/4" | 3-1/2" | 4-17/32" | -- | -- | 3/16" | 2-1/2" | 3-5/8" |
| Please lubricate holder before using: For running at LOW to MODERATE RPM we recommend ZENIPLEXII-Extreme Pressure Aluminum Complex Grease. (Do not overpack with grease). |
|
| CAT. NO. | DESCRIPTION. |
| GREASE-ORB | Grease 14 oz. Tube. |
| For running HIGH RPM, use a good | |
| lubricating oil instead of this grease. | |
| ORBX00/0.625 | ORBX00/0.750 | ORBX2/0.750 | ORBX2/1.000 | ORBX2/1.250 | ORBX2/1.500 | ORBXHD/1.500 | ORBXHD/1.750 | |
| Part No. | Cat. No. | Cat. No. | Cat. No. | Cat. No. | Cat. No. | Cat. No. | Cat. No. | Cat. No. |
| 3. Spindle | ORBX00-3N | ORBX0S-3N | ORBX2-3N | ORBX2-3N | ORBX2-3N | ORBX2-3N | ORBXHD-3 | ORBXHD-3 |
| 5. Set Screw | ------ | ORB2-5 | ORB2-5 | ORB2-5 | ORB2-5 | ORB2-5 | ------ | ------ |
| 16. Spindle Cap | ORBX00-16 | ORBX00-16 | ORBX2-16 | ORBX2-16 | ORBX2-16 | ORBX2-16 | ORBXHD-16 | ORBXHD-16 |
| 17. Drive Pin | ORBX00-17 | ORBX00-17 | ORBX2-17 | ORBX2-17 | ORBX2-17 | ORBX2-17 | ORBXHD-17 | ORBXHD-17 |
| Spanner Wrench | ADH00-3 | ADH00-3 | ADH2-3 | ADH2-3 | ADH2-3 | ADH2-3 | ADH3-3 | ADH3-3 |
