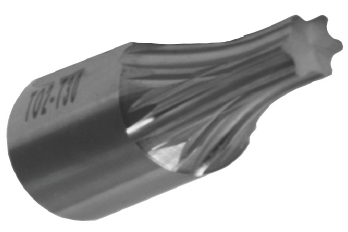

Internal 6 Lobed Broaches
with 8mm Dia. Shank x 28mm (1.102") OAL

Internal 6 Lobed Broaches for Swiss Holders

Internal 6 Lobed Broaches for Swiss Holders

Available in T15PM H.S.S.
(Prices on application)
6 Lobed for ORBSW/... Holders
8MM Shank Diameter x 28MM
NOMINAL
6-LOBE SIZE		 MAX CUTTING
DEPTH*		 PART NO.
T5 .047 TOSW-T5
T6 .047 TOSW-T6
T7 .063 TOSW-T7
T8 .078 TOSW-T8
T9 .078 TOSW-T9
T10 .109 TOSW-T10
T15 .109 TOSW-T15
T20 .156 TOSW-T20
T25 .156 TOSW-T25
T27 .188 TOSW-T27
T30 .219 TOSW-T30

* Custom depths of cut available to quote upon request

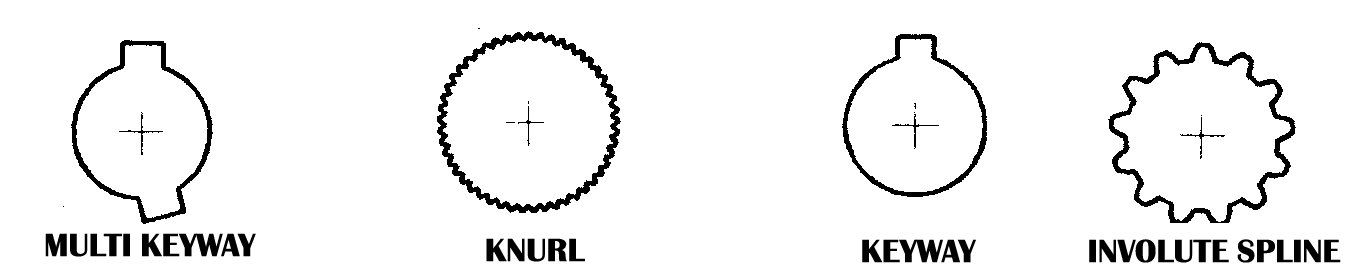

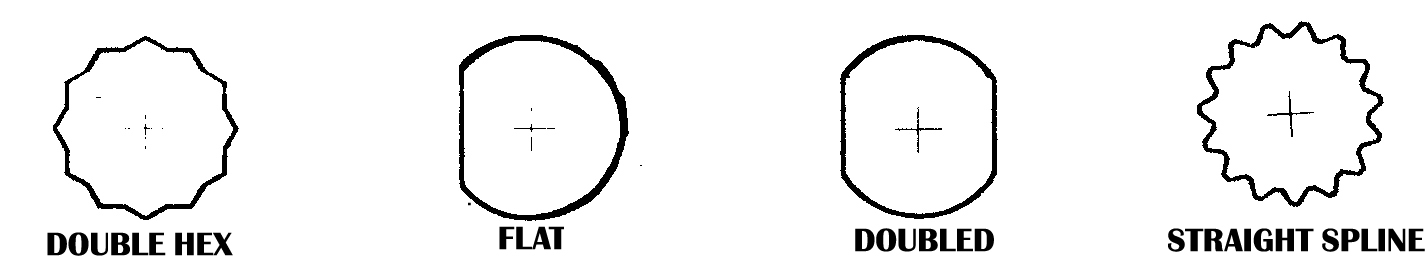

These are examples of special shapes that have been successfully broached.
Let us quote on your requirements.

Broach
Broach

PLEASE INCLUDE THE FOLLOWING INFORMATION WITH YOUR SPECIAL BROACH INQUIRY:
INTERNAL OR EXTERNAL H/S/S BROACH TOLERANCE IF NOT SHOWN ON PRINT IS H/S/S BROACH TO BE USED IN A SOMMA HOLDER?
SHAPE OF H/S/S BROACH FORM MATERIAL GRADE OF PART IF NOT, WHAT ARE THE BLANK DIM. FOR
YOUR HOLDER AND DEGREE OF SPINDLE TILT
CLEARING ID ON INTERNAL? ARE ANY INTERNAL RADII
LESS THAN .0055 ON INT. BROACHES?		 WHAT IS HOLDER SIZE OR SHANK DIA
EXTERNAL CLEARING ON OD? ARE ANY EXTERNAL RADII
LESS THAN .0055 ON EXT. BROACHES?
