Somma / Max-Bar Profiling (Series 50)

1/2" I.C., 50° Inserts

Please Note: Inserts are sold in packages of ten.
PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

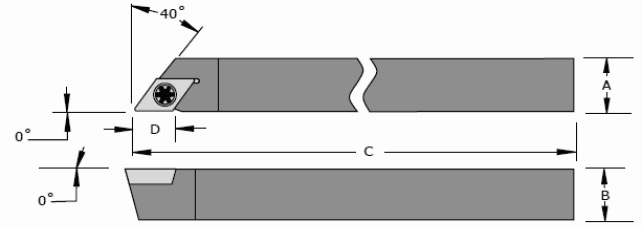

Neutral Rake 0° Lead (50 Series 50° Insert)

Max-Bar Neutral Rake 0° Lead (50 Series 50° Insert)
A/B C D SCREW WRENCH R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT NO.
.625 3.50 .625 4.76-127 T-25-P SKACR-62543-V SKACL-62543-V KCGB-43
.625 5.00 .625 4.76-127 T-25-P SKACR-62543-C SKACL-62543-C KCGB-43
.750 3.50 .625 4.76-127 T-25-P SKACR-75043-V SKACL-75043-V KCGB-43
.750 5.00 .625 4.76-127 T-25-P SKACR-75043-C SKACL-75043-C KCGB-43

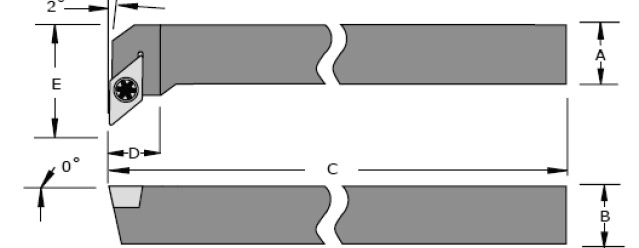

Gang Type Tooling - Neutral Rake 2° Lead (50 Series 50° Insert)

Max-Bar Gang Type Tooling - Neutral Rake 2° Lead (50 Series 50° Insert)
A B C D E SCREW WRENCH R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT NO.
.625 .625 4.50 .625 1.25 4.76-127 T-25-P SKFCR-62543-D SKFCL-62543-D KCGB-43

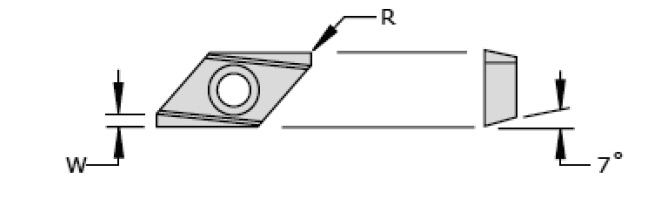

Front Turn & Chip Control (50 Series 50° Insert)


Front Turn & Chip Control (50 Series 50° Insert)

Right hand Front Turn with Chip Control shown

I.C. T R W RIGHT HAND LEFT HAND
INCH MM INCH MM INCH MM INSERT NO. INSERT NO.
.500 12.7 .188 4.76 0 .062 1.57 KCGBR-43-FT KCGBL-43-FT

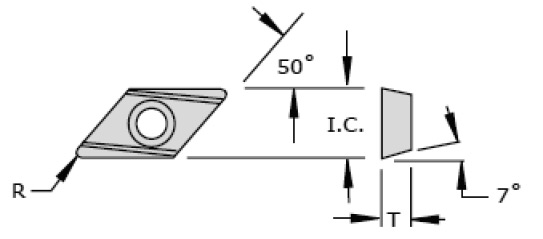

50° Diamond Turning & Profiling (50 Series 50° Insert)


50° Diamond Turning & Profiling (50 Series 50° Insert)

Right hand Profiling with Chip Control shown

I.C. T R NEUTRAL R.H. w/ Chip Control L.H. w/ Chip Control
INCH MM INCH MM INCH MM INSERT NO. INSERT NO. INSERT NO.
.500 12.7 .188 4.76 .005 .13 KCGB-43-005 KCGBR-43-005 KCGBL-43-005
.500 12.7 .188 4.76 .010 .25 KCGB-43-010 KCGBR-43-010 KCGBL-43-010
.500 12.7 .188 4.76 .015 .38 KCGB-43-015 KCGBR-43-015 KCGBL-43-015
.500 12.7 .188 4.76 .030 .76 KCGB-43-030 KCGBR-43-030 KCGBL-43-030
