Somma / Max-Bar (Series 6) Face Grooving

6mm I.C., 35° Inserts

Please Note: Inserts are sold in packages of ten.
PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

Face Grooving Bars (Series 6)

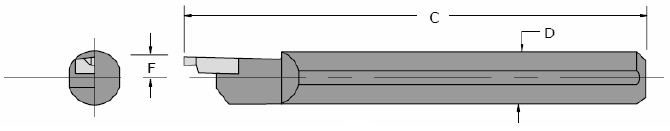

Max-Bar Face Grooving Bars (Series 6) Left hand bar shown

D C F SCREW WRENCH L.H. BAR NO. Insert Series
.625 5.75 .530 2.40-064 T-7 S10D-SVANL6M-FG VFGL-6M-

Face Grooving (Series 6)

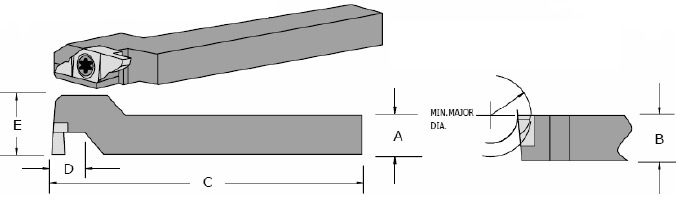

Max-Bar Face Grooving (Series 6) Right Hand Shown

NOTE: These right hand holders use left hand inserts/ left hand holders use right hand inserts
A/B C D E SCREW WRENCH R.H. HOLDER NO. L.H. HOLDER NO.
8MM 114MM 6.4MM 19MM 2.40-064 T-7-P SVFGR-08M6M-D SVFGL-08M6M-D
10MM 114MM 8MM 19MM 2.40-064 T-7 SVFGR-10M6M-D SVFGL-10M6M-D
12MM 114MM 9.5MM 19MM 2.40-064 T-7 SVFGR-12M6M-D SVFGL-12M6M-D
.375 4.50 .375 .750 2.40-064 T-7 SVFGR-3756M-D SVFGL-3756M-D
.500 4.50 .410 .750 2.40-064 T-7 SVFGR-5006M-D SVFGL-5006M-D
.625 4.50 .510 .750 2.40-064 T-7 SVFGR-6256M-D SVFGL-6256M-D
.750 4.50 .625 .750 2.40-064 T-7 SVFGR-7506M-D SVFGL-7506M-D

Inserts for Face Grooving Holders (Series 6)

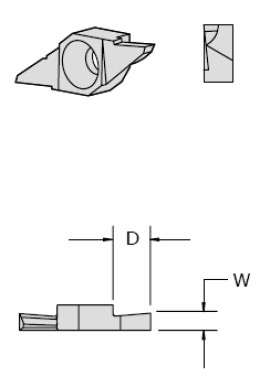

Max-Bar Inserts for Face Grooving Holders (Series 6)

Left hand insert shown
Width Depth Min. Major Dia. R.H. INSERT L.H. INSERT
Inch MM Inch MM Inch MM
.030 0.76 .050 1.27 .250 6.35 VFGR-6M305025 VFGL-6M305025
.030 0.76 .075 1.90 .500 12.7 VFGR-6M307550 VFGL-6M307550
.040 1.01 .060 1.52 .250 6.35 VFGR-6M406025 VFGL-6M406025
.040 1.01 .090 2.28 .500 12.7 VFGR-6M409050 VFGL-6M409050
.050 1.27 .075 1.90 .300 7.62 VFGR-6M507530 VFGL-6M507530
.050 1.27 .100 2.54 .600 15.3 VFGR-6M501060 VFGL-6M501060
.060 1.52 .080 2.03 .300 7.62 VFGR-6M608030 VFGL-6M608030
.060 1.52 .100 2.54 .600 15.3 VFGR-6M601060 VFGL-6M601060
.070 1.78 .090 2.28 .300 7.62 VFGR-6M709030 VFGL-6M709030
.070 1.78 .120 3.05 .600 15.3 VFGR-6M701260 VFGL-6M701260
.080 2.03 .100 2.54 .300 7.62 VFGR-6M801030 VFGL-6M801030
.080 2.03 .140 3.55 .600 15.3 VFGR-6M801460 VFGL-6M801460
.090 2.28 .140 3.55 .300 7.62 VFGR-6M901430 VFGL-6M901430
.090 2.28 .200 5.00 .600 15.3 VFGR-6M902060 VFGL-6M902060
