Somma / Max-Bar Profiling (Series 6)

6mm I.C., 35° Inserts

Please Note: Inserts are sold in packages of ten.
PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

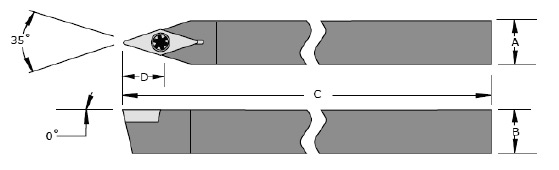

Neutral Rake 17° 30' Lead (6 Series)

Max-Bar Neutral Rake 17° 30' Lead (6 Series)

A/B C D SCREW WRENCH INSERT NO. HOLDER NO.
8MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVVBN-08M6M-C
10MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVVBN-10M6M-C
12MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVVBN-12M6M-C
.375 5.00 .375 2.40-064 T-7 VBGB-6M SVVBN-3756M-C
.500 5.00 .375 2.40-064 T-7 VBGB-6M SVVBN-5006M-C

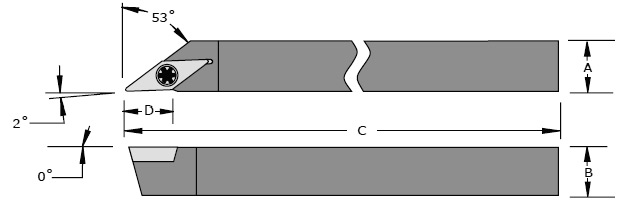

Neutral Rake 2° Lead (6 Series)

Max-Bar Neutral Rake 2° Lead (6 Series)
A/B C D SCREW WRENCH INSERT NO. R.H. HOLDER NO.  L.H. HOLDER NO.
8MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVJBR-08M6M-C SVJBL-08M6M-C
10MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVJBR-10M6M-C SVJBL-10M6M-C
12MM 127MM 10MM 2.40-064 T-7 VBGB-6M SVJBR-12M6M-C SVJBL-12M6M-C
.375 5.00 .375 2.40-064 T-7 VBGB-6M SVJBR-3756M-C SVJBL-3756M-C
.500 5.00 .375 2.40-064 T-7 VBGB-6M SVJBR-5006M-C SVJBL-5006M-C

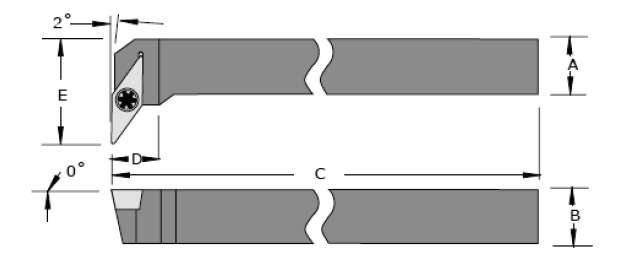

Gang Type Tooling - Neutral Rake 2° Lead (6 Series)

Max-Bar Gang Type Tooling - Neutral Rake 2° Lead (6 Series)

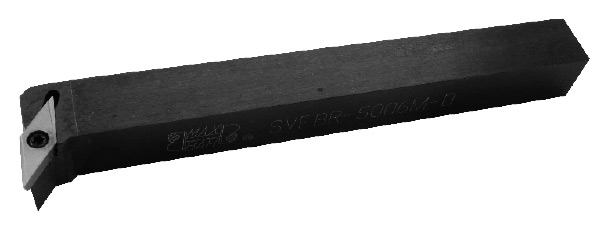

A B C D E SCREW R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT SERIES
.500 .375 4.50 .375 .875 2.40-064 SVFBR-3756M-D SVFBL-3756M-D VBGBR & L-6
.500 .500 4.50 .375 .875 5.40-064 SVFBR-5006M-D SVFBL-5006M-D VBGBR & L-6

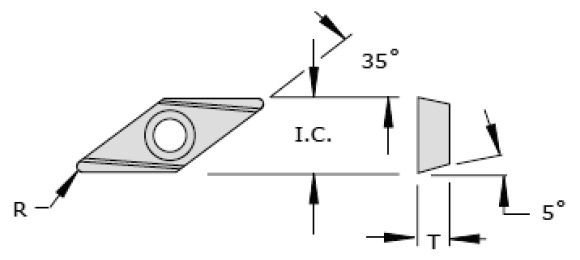

35° Diamond Turning & Profiling (6 Series)

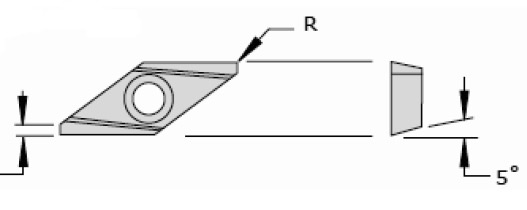

35° Diamond Turning & Profiling (6 Series)

Right hand profiling with Chip Control shown

I.C. T R NEUTRAL R.H. w/ Chip Control L.H. w/ Chip Control
INCH MM INCH MM INCH MM INSERT NO. INSERT NO. INSERT NO.
.236 6.00 .118 3.00 .002 .05 VBGB-6M-002 VBGBR-6M-002 VBGBL-6M-002
.236 6.00 .118 3.00 .005 .13 VBGB-6M-005 VBGBR-6M-005 VBGBL-6M-005
.236 6.00 .118 3.00 .007 .18 VBGB-6M-007 VBGBR-6M-007 VBGBL-6M-007
.236 6.00 .118 3.00 .010 .25 VBGB-6M-010 VBGBR-6M-010 VBGBL-6M-010
.236 6.00 .118 3.00 .015 .38 VBGB-6M-015 VBGBR-6M-015 VBGBL-6M-015

Front Turn & Chip Control (6 Series)



Front Turn & Chip Control (6 Series)

Right hand front turn with Chip Control shown

T R W RIGHT HAND LEFT HAND
INCH MM INCH MM INSERT NO. INSERT NO.
.118 3.00 0 .031 .80 VBGBR-6M-FT VBGBL-6M-FT


Front Turn & Chip Control (6 Series)
