Somma / Max-Bar (Series 6) Universal Diamond Bars
Please Note: Inserts are sold in packages of ten.
Max-Bar Inserts – Recommended Speeds & Feeds Max-Bar CatalogUni-Max Diamond Bars (Series 6)

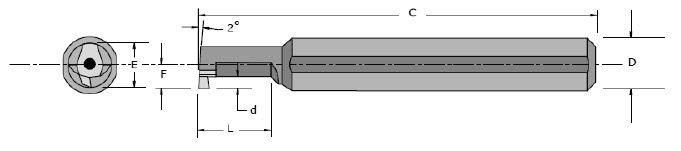

Right Hand Shown
| Note: Right hand bar
turning (counter clockwise rotation) use left hand inserts Left hand bar turning (clockwise rotation) use right hand inserts |
||||||||
| D | F | L | d | C | E | SCREW | WRENCH | L.H. & R.H. BAR NO. |
| .500 | .218 | .875 | .093 | 5.75 | .437 | 2.40-064 | T-7 | S08D-SVFNLR6MID-1A |
| .625 | .218 | .875 | .093 | 5.75 | .437 | 2.40-064 | T-7 | S10D-SVFNLR6MID-1A |
| .750 | .218 | .875 | .093 | 5.75 | .437 | 2.40-064 | T-7 | S12D-SVFNLR6MID-1A |
Grooving

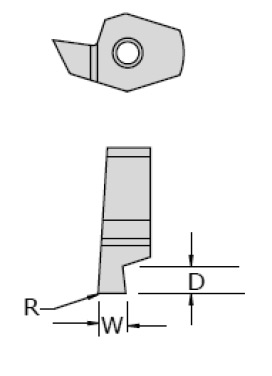

Left hand insert shown for
Right hand grooving
| Width | Depth | Radius | R.H. INSERT | L.H. INSERT | |||
| Inch | MM | Inch | MM | ||||
| .020 | 0.50 | .040 | 1.00 | 0 | VNGR-6MID020 | VNGL-6MID020 | |
| .025 | 0.63 | .050 | 1.27 | 0 | VNGR-6MID025 | VNGL-6MID025 | |
| .031 | 0.78 | .060 | 1.52 | 0 | VNGR-6MID031 | VNGL-6MID031 | |
| .040 | 1.00 | .080 | 2.03 | 0 | VNGR-6MID040 | VNGL-6MID040 | |
| .047 | 1.20 | .090 | 2.28 | 0 | VNGR-6MID047 | VNGL-6MID047 | |
| .062 | 1.57 | .090 | 2.28 | 0 | VNGR-6MID062 | VNGL-6MID062 | |
| .078 | 1.98 | .090 | 2.28 | 0 | VNGR-6MID078 | VNGL-6MID078 | |
| .093 | 2.36 | .090 | 2.28 | 0 | VNGR-6MID093 | VNGL-6MID093 | |
Boring

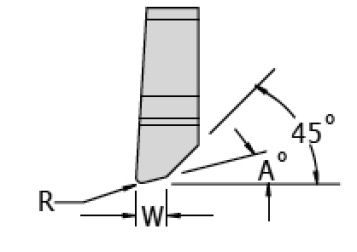

Left hand insert shown for
Right hand boring
| Width | Radius | A° | R.H. INSERT | L.H. INSERT | |||
| Inch | MM | Inch | MM | ||||
| .060 | 1.52 | 0 | 0 | 4° | VFTR-6MID040 | VFTL-6MID040 | |
| .030 | 0.76 | .002 | .05 | 15° | VFTR-6MID152 | VFTL-6MID152 | |
| .030 | 0.76 | .007 | .18 | 15° | VFTR-6MID157 | VFTL-6MID157 | |
Threading
Left hand insert shown for
Right hand threading
| Width | Radius | A° | R.H. INSERT | L.H. INSERT | |||
| Inch | MM | Inch | MM | ||||
| .031 | 0.78 | 0 | 0 | 60° | VNVR-6MID6031 | VNVL-6MID6031 | |
| .062 | 1.57 | .002 | .05 | 60° | VNVR-6MID6092 | VNVL-6MID6092 | |
| .093 | 2.36 | .004 | .10 | 60° | VNVR-6MID6093 | VNVL-6MID6093 | |
| .047 | 1.20 | .005 | .13 | 90° | VNVR-6MID9047 | VNVL-6MID9047 | |
| .093 | 2.36 | .005 | .13 | 90° | VNVR-6MID9093 | VNVL-6MID9093 | |
