Somma / Max-Bar (Series 6)

6mm I.C., 35° Inserts

PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

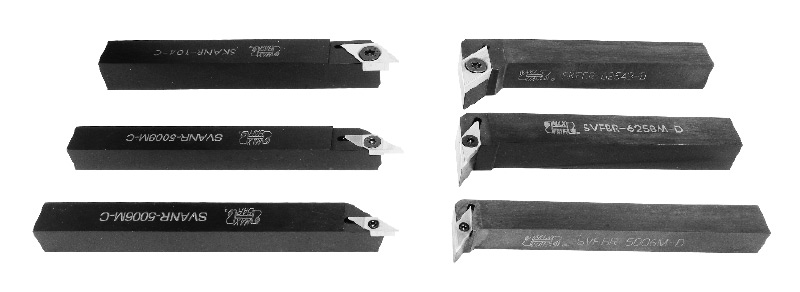

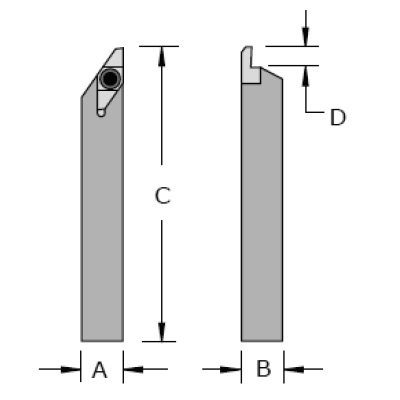

Max-Bar Series 6 Toolholders

Right Hand Shown

Series 6 Toolholders

A/B C D R.H. HOLDER L.H. HOLDER
7MM 127MM 5MM SVANR-07M6M-C SVANL-07M6M-C
8MM 127MM 5MM SVANR-08M6M-C SVANL-08M6M-C
10MM 127MM 5MM SVANR-10M6M-C SVANL-10M6M-C
12MM 127MM 5MM SVANR-12M6M-C SVANL-12M6M-C
.375 5.00 .200 SVANR-3756M-C SVANL-3756M-C
.500 5.00 .200 SVANR-5006M-C SVANL-5006M-C
.625 5.00 .200 SVANR-6256M-C SVANL-6256M-C
.750 5.00 .200 SVANR-7506M-C SVANL-7506M-C

Holders include, Screw# 2.40-064, and Wrench# T-7
Series 6 Toolholders
Please Note: Inserts are sold in packages of ten.

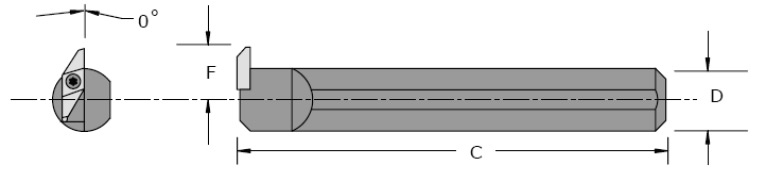

Diamond Bars for Turret & Gang Loading / Backworking (Series 6)


Diamond Bars for Turret & Gang Loading / Backworking (Series 6)
Left hand bar shown

NOTE: Right hand diamond bars use left hand inserts/ left hand bars use right hand inserts
D C F SCREW WRENCH R.H. BAR  L.H. BAR
.625 5.75 .515 2.40-064 T-7 S10D-SVFNR6M S10D-SVFNL6M
.750 5.75 .575 2.40-064 T-7 S12D-SVFNR6M S12D-SVFNL6M
20MM 146MM 15MM 2.40-064 T-7 S20MD-SVFNR6M S20MD-SVFNL6M
22MM 146MM 16MM 2.40-064 T-7 S22MD-SVFNR6M S22MD-SVFNL6M
25MM 146MM 17.5MM 2.40-064 T-7 S25MD-SVFNR6M S25MD-SVFNL6M

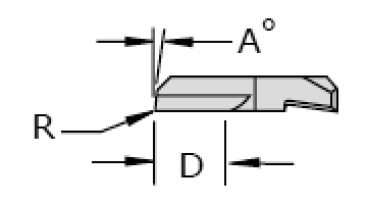

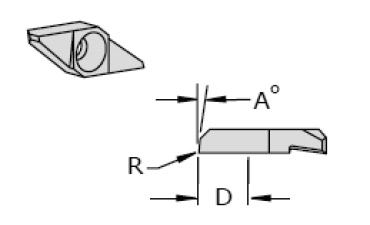

Front Turn (Series 6)



Front Turn (Series 6)

Front Turn (Series 6)

Depth Radius A° R.H. INSERT L.H. INSERT
Inch MM Inch MM
.200 5.00 0 0 1° VFTR-6M010 VFTL-6M010
.200 5.00 0 0 4° VFTR-6M040 VFTL-6M040
.200 5.00 .002 .05 15° VFTR-6M152 VFTL-6M152
.200 5.00 .007 .18 15° VFTR-6M157 VFTL-6M157

.200 5.00 0 0 1° VFTRB-6M010** VFTLB-6M010**
.200 5.00 0 0 4° VFTRB-6M040** VFTLB-6M040**
.200 5.00 .002 .05 15° VFTRB-6M152** VFTLB-6M152**
.200 5.00 .007 .18 15° VFTRB-6M157** VFTLB-6M157**
** With chip control

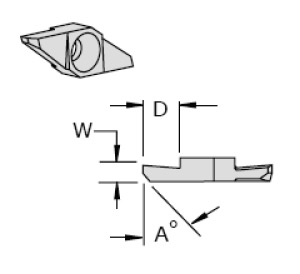

Back Turn (Series 6)

Back Turn (Series 6)

Width Depth A° R.H. INSERT L.H. INSERT
Inch MM Inch MM
.031 0.78 .050 1.27 45° VBTR-6M452 VBTL-6M452
.047 1.19 .085 2.16 45° VBTR-6M453 VBTL-6M453
.062 1.57 .130 3.30 45° VBTR-6M454 VBTL-6M454
.078 1.98 .200 5.00 45° VBTR-6M455 VBTL-6M455
.093 2.36 .200 5.00 45° VBTR-6M456 VBTL-6M456

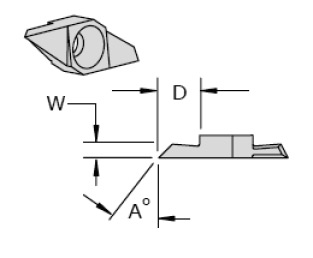

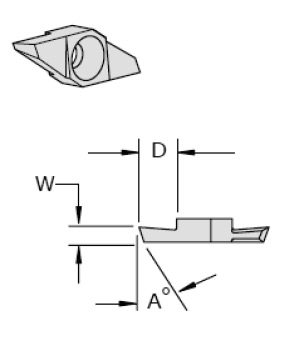

Cut-Off (Series 6)

Cut-Off (Series 6)

Width Depth A° R.H. INSERT L.H. INSERT
Inch MM Inch MM
.020 0.50 .050 1.30 25° VCOR-6M2520 VCOL-6M2520
.025 0.63 .065 1.65 25° VCOR-6M2525 VCOL-6M2525
.031 0.78 .090 2.30 25° VCOR-6M2531 VCOL-6M2531
.040 1.00 .100 2.60 20° VCOR-6M2040 VCOL-6M2040
.047 1.20 .130 3.30 20° VCOR-6M2047 VCOL-6M2047
.062 1.57 .160 4.06 15° VCOR-6M1562 VCOL-6M1562
.078 1.98 .200 5.00 15° VCOR-6M1578 VCOL-6M1578
.093 2.36 .200 5.00 15° VCOR-6M1593 VCOL-6M1593



Opp. Hand Cut-Off for Pickoff Spindle (Series 6)

Right hand with
Left hand cut-off shown

Opp. Hand Cut-Off for Pickoff Spindle (Series 6)

Width Depth A° R.H. INSERT L.H. INSERT
Inch MM Inch MM
.031 0.78 .090 2.30 25° VCORL-6M2531 VCOLR-6M2531
.040 1.00 .100 2.60 20° VCORL-6M2040 VCOLR-6M2040
.047 1.20 .130 3.30 20° VCORL-6M2047 VCOLR-6M2047
.062 1.57 .160 4.06 15° VCORL-6M1562 VCOLR-6M1562
.078 1.98 .200 5.00 15° VCORL-6M1578 VCOLR-6M1578
.093 2.36 .200 5.00 15° VCORL-6M1593 VCOLR-6M1593

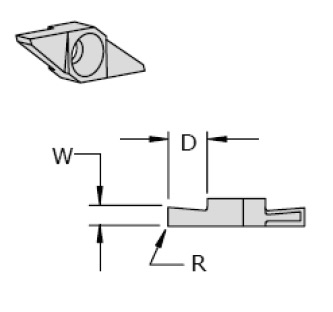

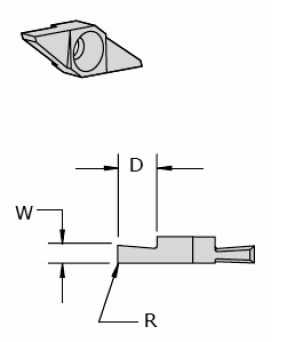

Plunge & Turn (Series 6)

Square bottom

Plunge & Turn (Series 6)

Width Depth Radius R.H. INSERT L.H. INSERT
Inch MM Inch MM
.020 0.51 .030 0.76 0 VTGR-6M020 VTGL-6M020
.031 0.78 .050 1.27 0 VTGR-6M031 VTGL-6M031
.040 1.00 .075 1.90 0 VTGR-6M040 VTGL-6M040
.047 1.20 .085 2.16 0 VTGR-6M047 VTGL-6M047
.062 1.57 .130 3.30 0 VTGR-6M062 VTGL-6M062
.078 2.00 .200 5.00 0 VTGR-6M078 VTGL-6M078
.093 2.36 .200 5.00 0 VTGR-6M093 VTGL-6M093

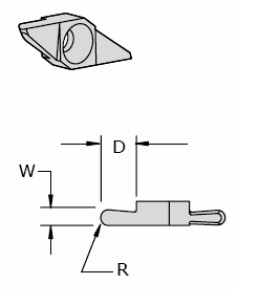

Full Radius (Series 6)

Full Radius (Series 6)

Width Depth Radius R.H. INSERT L.H. INSERT
Inch MM Inch MM Inch MM
.010 0.25 .030 0.76 .005 0.13 VFRR-6M010 VFRL-6M010
.015 0.38 .040 1.00 .007 0.19 VFRR-6M015 VFRL-6M015
.020 0.50 .050 1.30 .010 0.25 VFRR-6M020 VFRL-6M020
.025 0.63 .065 1.65 .012 0.32 VFRR-6M025 VFRL-6M025
.030 0.76 .090 2.30 .015 0.38 VFRR-6M030 VFRL-6M030
.040 1.00 .110 2.80 .020 0.50 VFRR-6M040 VFRL-6M040
.047 1.20 .130 3.30 .023 0.60 VFRR-6M047 VFRL-6M047
.062 1.57 .160 4.06 .031 0.78 VFRR-6M062 VFRL-6M062
.078 1.98 .180 4.57 .039 1.00 VFRR-6M078 VFRL-6M078
.093 2.36 .180 4.57 .046 1.20 VFRR-6M093 VFRL-6M093

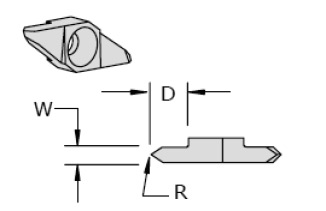

Threading 60° Centrally Located (Series 6)

Threading 60° Centrally Located (Series 6)

Width Depth Radius R.H. INSERT L.H. INSERT
Inch MM Inch MM Inch MM
.031 0.78 .150 3.80 0 0 VNVR-6M031 VNVL-6M031
.047 1.20 .180 4.57 .002 .05 VNVR-6M047 VNVL-6M047
.062 1.57 .200 5.00 .002 .05 VNVR-6M062 VNVL-6M062
.093 2.36 .200 5.00 .004 .10 VNVR-6M093 VNVL-6M093



Grooving (Series 6)

Grooving (Series 6)

Width Depth Radius R.H. INSERT L.H. INSERT
Inch MM Inch MM
.010 0.25 .020 0.50 0 VNGR-6M010 VNGL-6M010
.012 0.30 .025 0.64 0 VNGR-6M012 VNGL-6M012
.015 0.38 .035 0.89 0 VNGR-6M015 VNGL-6M015
.020 0.50 .050 1.30 0 VNGR-6M020 VNGL-6M020
.025 0.63 .065 1.65 0 VNGR-6M025 VNGL-6M025
.031 0.78 .090 2.30 0 VNGR-6M031 VNGL-6M031
.040 1.00 .100 2.60 0 VNGR-6M040 VNGL-6M040
.047 1.20 .130 3.30 0 VNGR-6M047 VNGL-6M047
.062 1.57 .160 4.06 0 VNGR-6M062 VNGL-6M062
.078 1.98 .200 5.00 0 VNGR-6M078 VNGL-6M078
.093 2.36 .200 5.00 0 VNGR-6M093 VNGL-6M093
