Somma / Max-Bar 50° Profiling (Series 8)

8mm I.C., 50° Inserts

Please Note: Inserts are sold in packages of ten.
PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

Neutral Rake 0° Lead (8 Series 50° Insert)

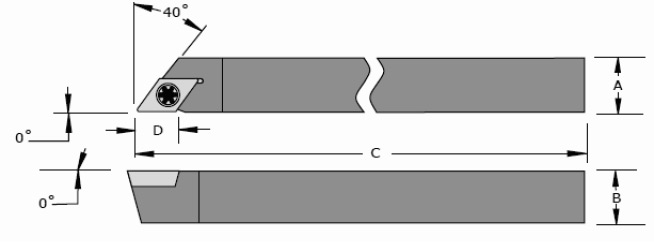

Max-Bar Neutral Rake 0° Lead (8 Series 50° Insert)
A/B C D SCREW WRENCH R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT NO.
10MM 127MM 10MM 3.20-095 T-10-P SKACR-10M8M-C SKACL-10M8M-C KCGB-8M
12MM 127MM 10MM 3.20-095 T-10-P SKACR-12M8M-C SKACL-12M8M-C KCGB-8M
.375 3.50 .390 3.20-095 T-10-P SKACR-3758M-V SKACL-3758M-V KCGB-8M
.375 5.00 .390 3.20-095 T-10-P SKACR-3758M-C SKACL-3758M-C KCGB-8M
.500 3.50 .390 3.20-095 T-10-P SKACR-5008M-V SKACL-5008M-V KCGB-8M
.500 5.00 .390 3.20-095 T-10-P SKACR-5008M-C SKACL-5008M-C KCGB-8M

Gang Type Tooling - Neutral Rake 2° Lead (8 Series 50° Insert)

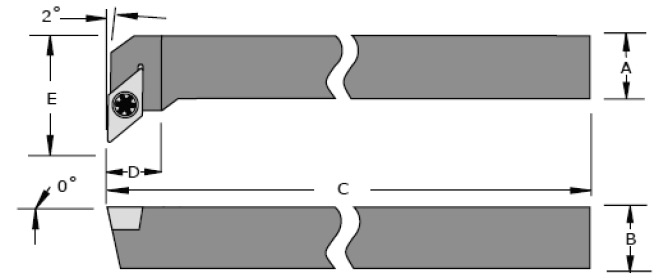

Max-Bar Gang Type Tooling - Neutral Rake 2° Lead (8 Series 50° Insert)
A B C D E SCREW WRENCH R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT NO.
.500 .375 4.50 .430 .843 3.20-095 T-10-P SKFCR-3758M-D SKFCL-3758M-D KCGB-8M
.500 .500 4.50 .430 .843 3.20-095 T-10-P SKFCR-5008M-D SKFCL-5008M-D KCGB-8M

Front Turn & Chip Control (8 Series 50° Insert)

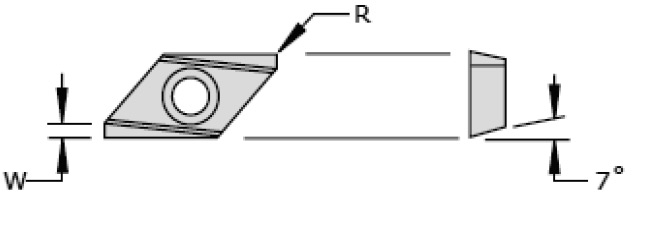

Front Turn & Chip Control (8 Series 50° Insert)

Right hand Front Turn with Chip Control shown

T R W RIGHT HAND LEFT HAND
INCH MM INCH MM INSERT NO. INSERT NO.
.157 4.00 0 .031 0.80 KCGBR-8M-FT KCGBL-8M-FT

50° Diamond Turning & Profiling (8 Series 50° Insert)

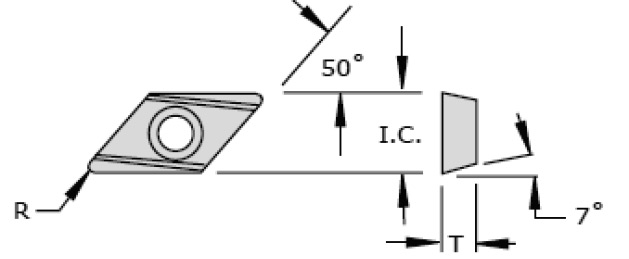

50° Diamond Turning & Profiling (8 Series 50° Insert)

Right hand Profiling with Chip Control shown

I.C. T R NEUTRAL R.H. w/ Chip Control L.H. w/ Chip Control
INCH MM INCH MM INCH MM INSERT NO. INSERT NO. INSERT NO.
.314 8.00 .157 4.00 .002 .05 KCGB-8M-002 KCGBR-8M-002 KCGBL-8M-002
.314 8.00 .157 4.00 .005 .13 KCGB-8M-005 KCGBR-8M-005 KCGBL-8M-005
.314 8.00 .157 4.00 .007 .18 KCGB-8M-007 KCGBR-8M-007 KCGBL-8M-007
.314 8.00 .157 4.00 .010 .25 KCGB-8M-010 KCGBR-8M-010 KCGBL-8M-010
.314 8.00 .157 4.00 .015 .38 KCGB-8M-015 KCGBR-8M-015 KCGBL-8M-015
