Somma / Max-Bar Profiling (Series 8)

8mm I.C., 35° Inserts

Please Note: Inserts are sold in packages of ten.
PDF   Max-Bar Inserts – Recommended Speeds & Feeds       Max-Bar Catalog

Neutral Rake 17° 30' Lead (8 Series)

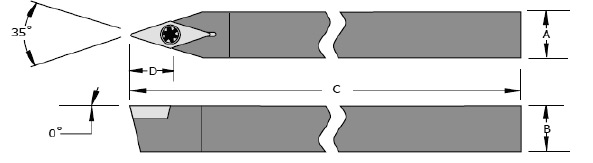

Max-Bar Neutral Rake 17° 30' Lead (8 Series)
A/B C D SCREW WRENCH INSERT NO. HOLDER NO.
.500 3.50 .500 3.20-095 T-10-P VBGB-8M SVVBN-5008M-V
.500 5.00 .500 3.20-095 T-10-P VBGB-8M SVVBN-5008M-C
.625 3.50 .500 3.20-095 T-10-P VBGB-8M SVVBN-6258M-V
.625 5.00 .500 3.20-095 T-10-P VBGB-8M SVVBN-6258M-C
.750 3.50 .500 3.20-095 T-10-P VBGB-8M SVVBN-7508M-V
.750 5.00 .500 3.20-095 T-10-P VBGB-8M SVVBN-7508M-C

Neutral Rake 2° Lead (8 Series)

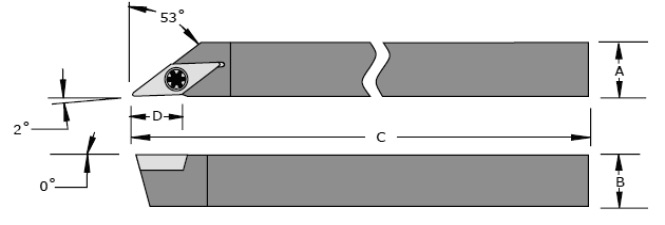

Max-Bar Neutral Rake 2° Lead (8 Series)
A/B C D SCREW WRENCH INSERT NO. R.H. HOLDER NO.  L.H. HOLDER NO.
.500 3.50 .500 3.20-095 T-10-P VBGB-8M SVLBR-5008M-V SVJBL-5008M-V
.500 5.00 .500 3.20-095 T-10-P VBGB-8M SVLBR-5008M-C SVJBL-5008M-C
.625 3.50 .500 3.20-095 T-10-P VBGB-8M SVLBR-6258M-V SVJBL-6258M-V
.625 5.00 .500 3.20-095 T-10-P VBGB-8M SVLBR-6258M-C SVJBL-6258M-C
.750 3.50 .500 3.20-095 T-10-P VBGB-8M SVLBR-7508M-V SVJBL-7508M-V
.750 5.00 .500 3.20-095 T-10-P VBGB-8M SVLBR-7508M-C SVJBL-7508M-C

Gang Type Tooling - Neutral Rake 2° Lead (8 Series)

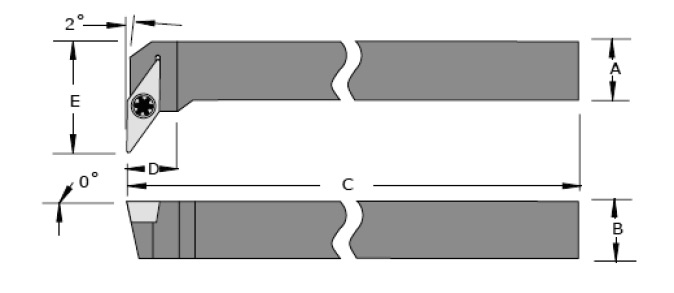

Max-Bar Gang Type Tooling - Neutral Rake 2° Lead (8 Series)
A B C D E SCREW R.H. HOLDER NO.  L.H. HOLDER NO.  INSERT SERIES
.625 .625 4.50 .500 1.12 3.20-095 SVFBR-6258M-D SVFBL-6258M-D VBGBR & L-8

Front Turn & Chip Control (8 Series)


Front Turn & Chip Control (8 Series)

Right hand front turn with Chip Control shown

T R W RIGHT HAND LEFT HAND
INCH MM INCH MM INSERT NO. INSERT NO.
.157 4.00 0 .031 .80 VBGBR-8M-FT VBGBL-8M-FT

35° Diamond Turning & Profiling (8 Series)


35° Diamond Turning & Profiling (8 Series)

Right hand profiling with Chip Control shown

I.C. T R NEUTRAL R.H. w/ Chip Control L.H. w/ Chip Control
INCH MM INCH MM INCH MM INSERT NO. INSERT NO. INSERT NO.
.314 8.00 .157 4.00 .002 .05 VBGB-8M-002 VBGBR-8M-002 VBGBL-8M-002
.314 8.00 .157 4.00 .005 .13 VBGB-8M-005 VBGBR-8M-005 VBGBL-8M-005
.314 8.00 .157 4.00 .007 .18 VBGB-8M-007 VBGBR-8M-007 VBGBL-8M-007
.314 8.00 .157 4.00 .015 .38 VBGB-8M-015 VBGBR-8M-015 VBGBL-8M-015
