Shave Tool Holders for Multiple Spindle Machines

(Patent No. 5,848,562)

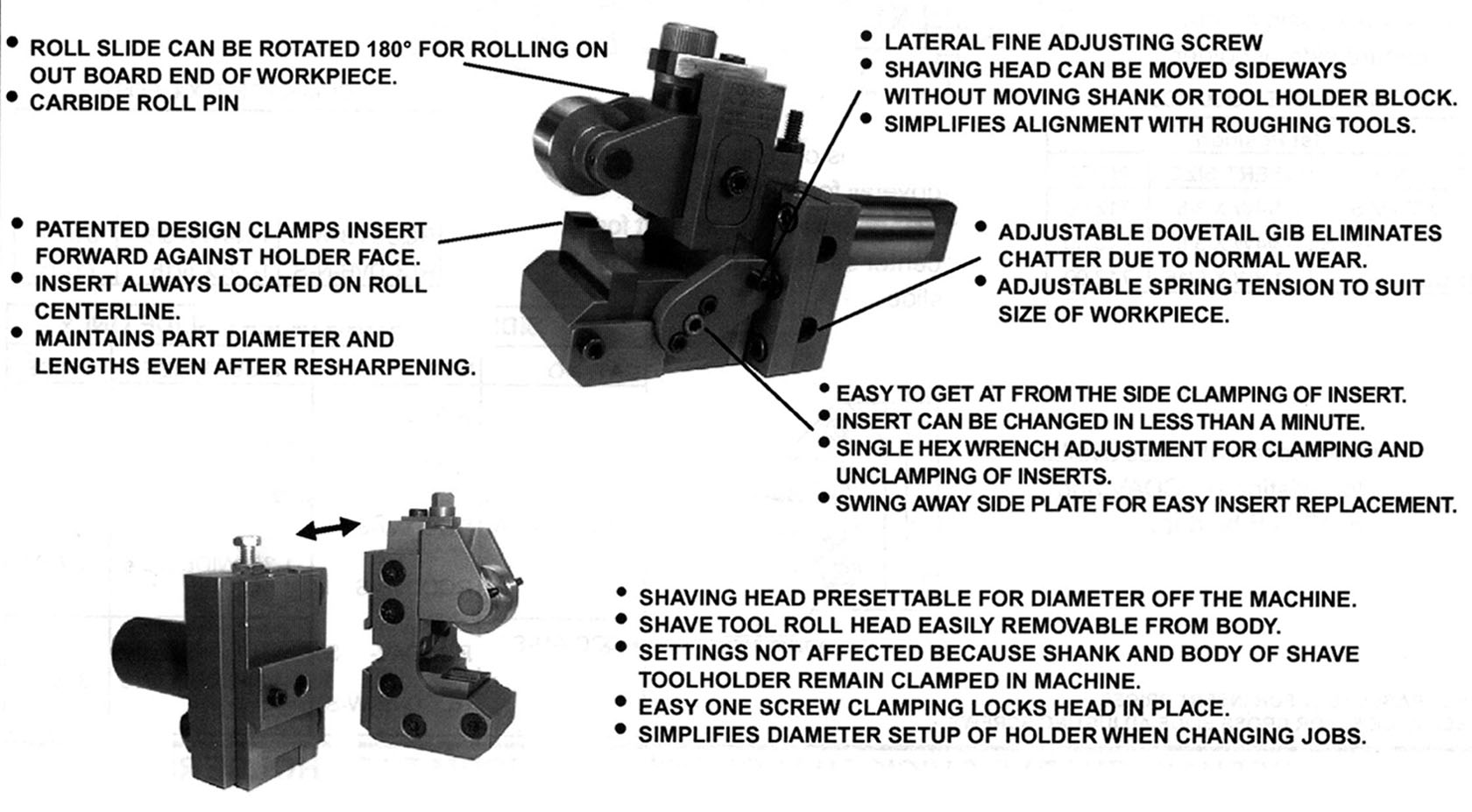

At Last...A Shave Tool With All the Features You Always Wanted

The only quick change shave tool insert that can be resharpened without affecting its original:
  • Center setting
  • Part diameter setting
  • Lateral setting
Can also be used with throw-away inserts.
Ideal for Datum Point applications.

Shave Tool Holders for Multiple Spindle Machines

Shave Tool Holders for Multiple Spindle Machines

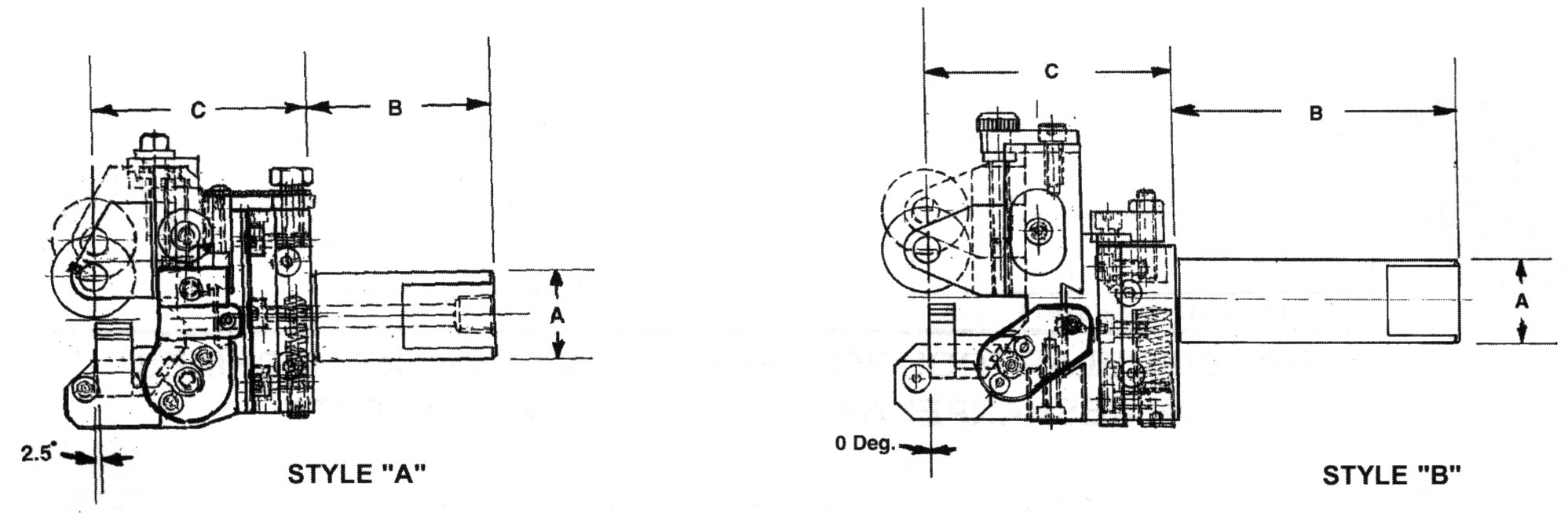

Shave Tool Holders for Multiple Spindle Machines - Style "A"


CAT. NO.

CAPACITY

INSERT

SIZE

A

B

C

RQCMS-0

0-7/8"

1-1/8 X 3/8

1"

3-1/2

2-3/8

RQCMS-0-1

1/8-1"

1-1/8 x 3/8

1"

3-1/2

2-3/8

RQCMS-1

1/8-1"

1-1/8 X 3/8

1-1/4"

4"

3-1/8

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)

Shave Tool Holders for Multiple Spindle Machines - Style "B"


CAT. NO.

CAPACITY

INSERT

SIZE

A

B

C

RQCMS-2

1/8-1-1/4"

1-3/4 X 3/8

1-1/4

4"

3-1/2

RQCMS-3

1/2-1-5/8"

1-3/4 X 3/8

1-1/2"

4-1/2

3-1/2

RQCMS-5

1-1/8-2-1/4"

1-3/4 X 3/8

1-1/2

4-1/2

3-1/2

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)

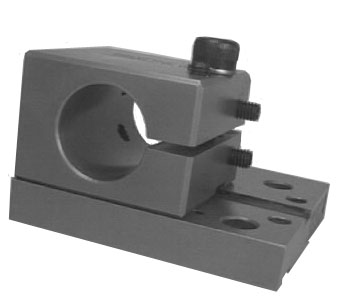

Shave Tool Mounting Blocks for Gildemeister and Other Metric Machines

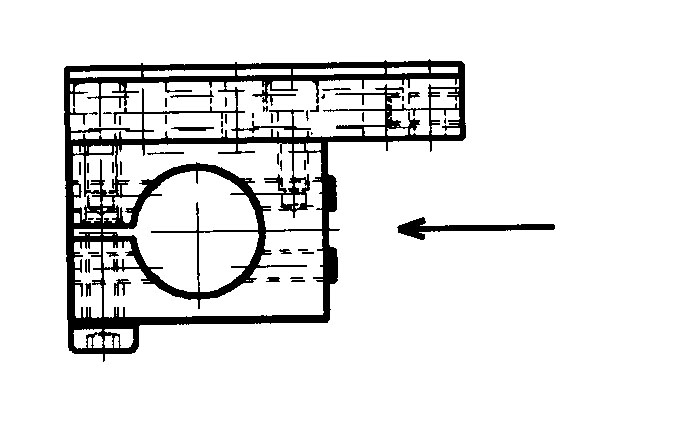

Shave Tool Mounting Blocks for Gildemeister and Other Metric Machines - Diagram

Shank Holding Block can be repositioned on base plate close to spindle for upside down cross slide positions.

Shave Tool Mounting Blocks for Gildemeister and Other Metric Machines


 CAT. NO.

CENTER

HEIGHT

SHANK

DIA.

RQCGLD20-SB

30MM

1.000"

RQCGLD50-SB

50MM

1.500"

Click here for Insert Blanks.
(Note the appropriate size of insert needed for chosen holder.)
